F.1.2 3 Phase Connector Box
The purpose of the 3 Phase Connector Box is to provide a means for nearly all accessories to
be pre-connected to the 6000 Bird Dog Plus. The cable connections are all different so it is
impossible to connect a probe or sensor to the wrong lead. The probes and sensors are
connected to the bottom of the 3 Phase Connector Box through gaps in the bottom of the case.

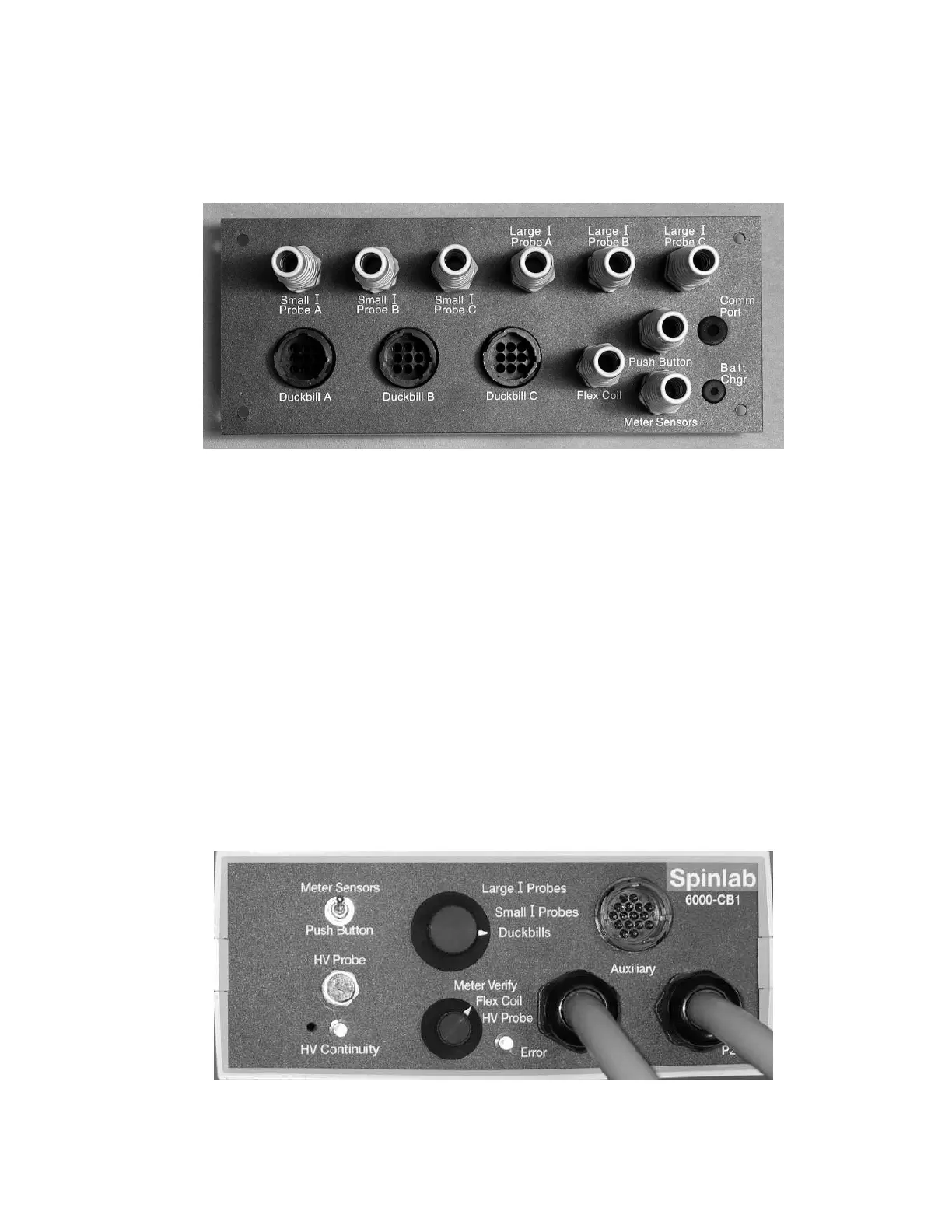

The following is a list of everything connected to and through the rear of the 3 Phase
Connector Box:
Small I Probes--3 connections for the Small I Probes (A, B, & C)
Large I Probes--3 connections for the Large I Probes (A, B, & C)
Duckbill—3 connections for the duckbill connectors (A, B, & C)
Flex Coil--Connector for the Flexible Coil Probe
Meter Sensors--Connector for the laser and infrared sensors for meter verification testing
Push Button--Connector for the push button for meter verification testing
Plastic supports are used to keep the 3 Phase Connector Box at the same level as the 6000
Bird Dog Plus. Inside the 3 Phase Connector Box are connections for up to 2 extra batteries
(this is for future use and you should not need them for normal operation of the 6000 Bird Dog
Plus), and if you purchased a 1500 High Voltage Kit from Spinlab, the Retriever Interface
Card is inside the box as well. The only thing that you need to be concerned about is the front
panel of the 3 Phase Connector Box:
The following is a detailed description of everything on the front panel and how it works:
