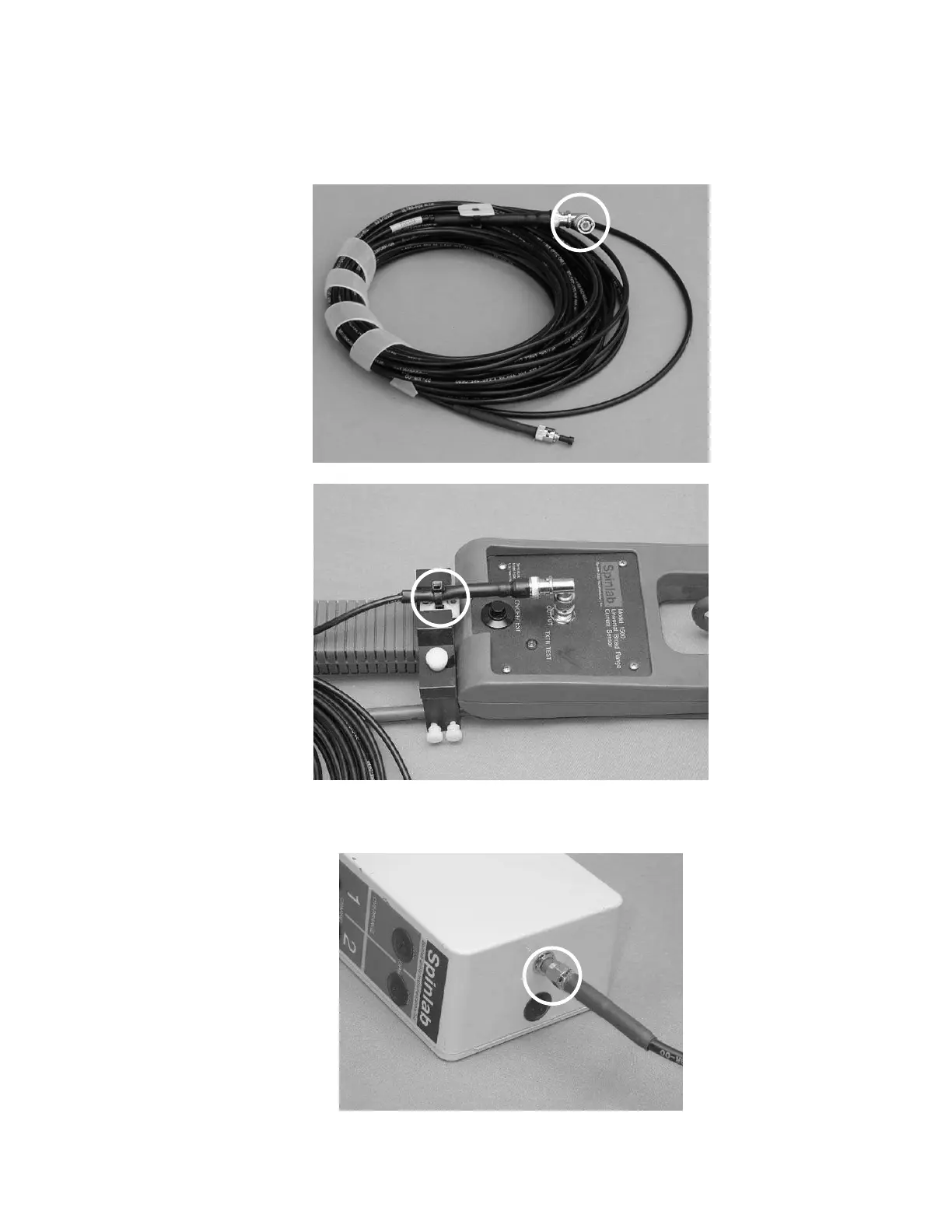

Step 3—Now take the fiber optic cable from the top inside pouch of the case and attach the end
with the BNC connector to the BNC port on the high voltage head. Make sure the stress relief fits
into the slide as noted.
Step 4—Now connect the other end of the fiber optic cable to the Retriever Interface Box.
Older 5000 Bird Dog Plus Retriever Interface Box
