92
5000 MV ONLY!
Test: Simultaneous Test of Both Phases at Once
Voltage Cable
o Red alligator clip to phase A
o White alligator clip to phase B. This produces V
AB.
o Black alligator clip on phase C. This produces V
CB.

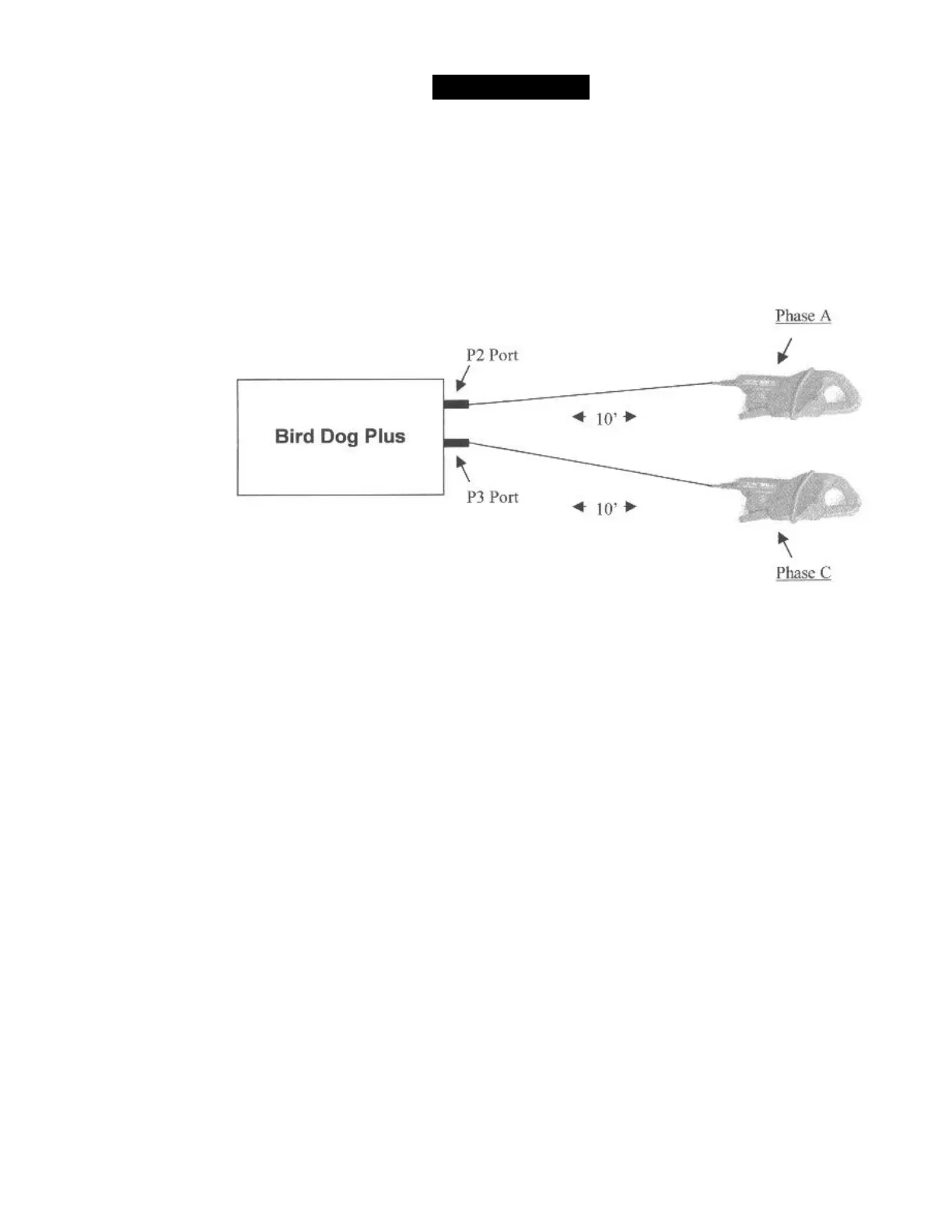

Clamp-on CT—From the P2 port around phase A (I
A
) arrow toward load.
Clamp-on CT—From the P3 port around phase C (I
C
) arrow toward load.
(In the above illustration, a Y cable is connected to the P3 port for the sensors to attach.)
