Spirax Sarco LC2650 User Manual

IM-P402-128 EMM Issue 7
25
Ø 4.2 mm
10 mm
22
mm

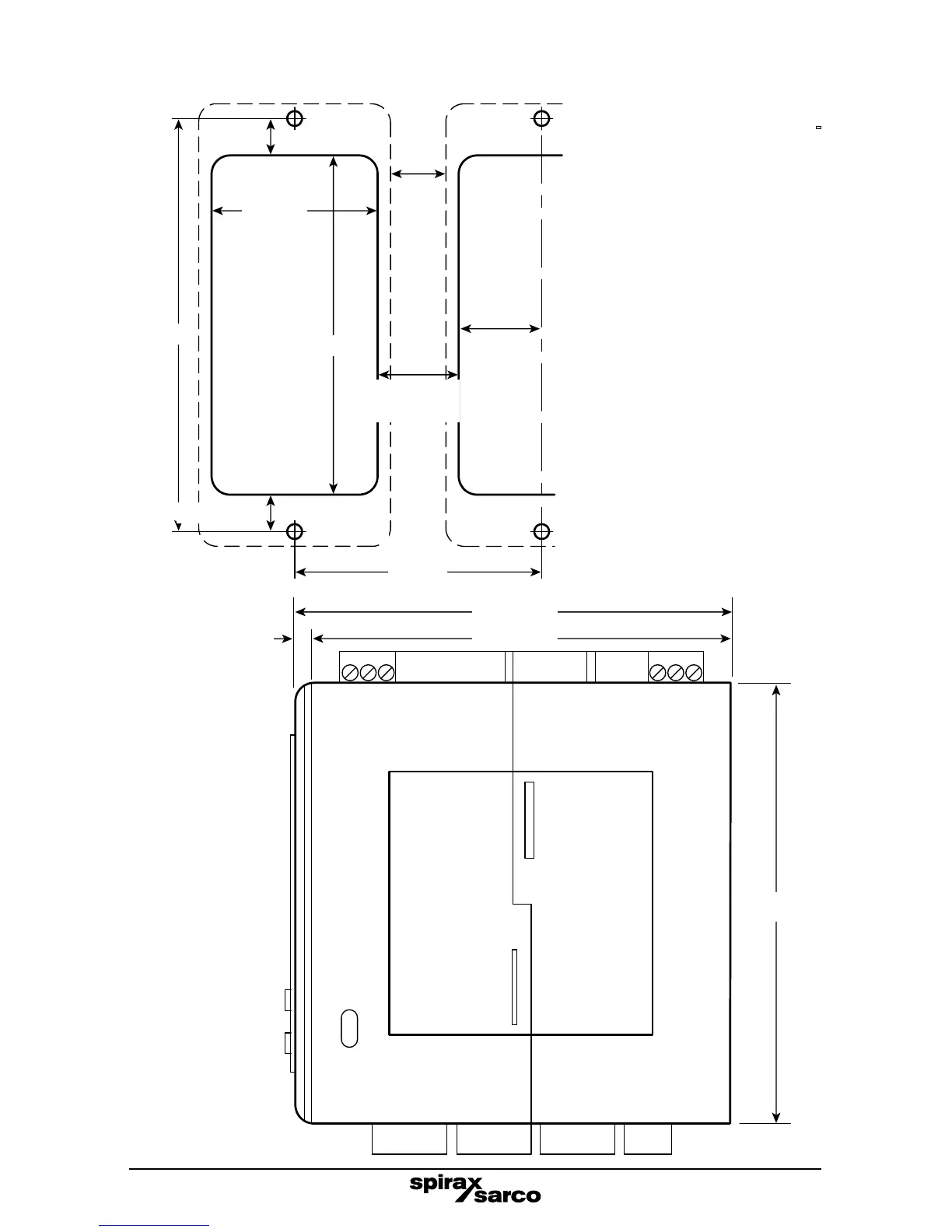

Fig. 12
Chassis plate / panel
-
cutout diagram
112 mm
67 mm
10 mm
45 mm
92 mm
22.5
mm
Ø 4.2 mm
15
mm
Ø 4.2 mm
Ø 4.2 mm
120 mm
8 mm
112 mm
120 mm
