SP500 Electropneumatic Smart Positioner
-

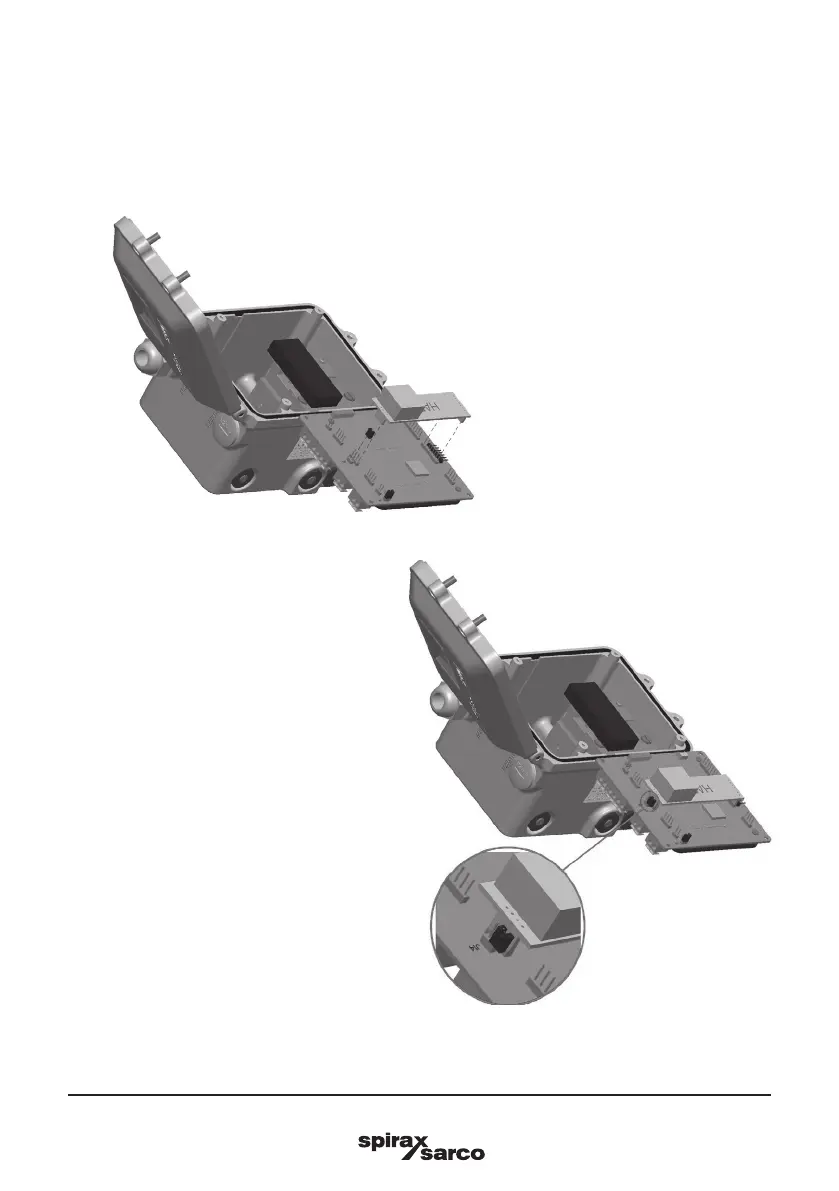

Insert the HART
®
option board as shown in Figure 22.
-
Collocate the Jumper J14 as shown in Figure 23.
-
Rotate the mainboard to the initial position, x it with the 4 screws, close the positioner and switch on
the power supply and air supply.
Fig. 22
Fig. 23
