SP500 Electropneumatic Smart Positioner
5.3 Sequence for mounting an SP500 positioner to a
rotary actuator
5.3.1
Assembly for fitting an SP500 on to a ¼ turn valve.

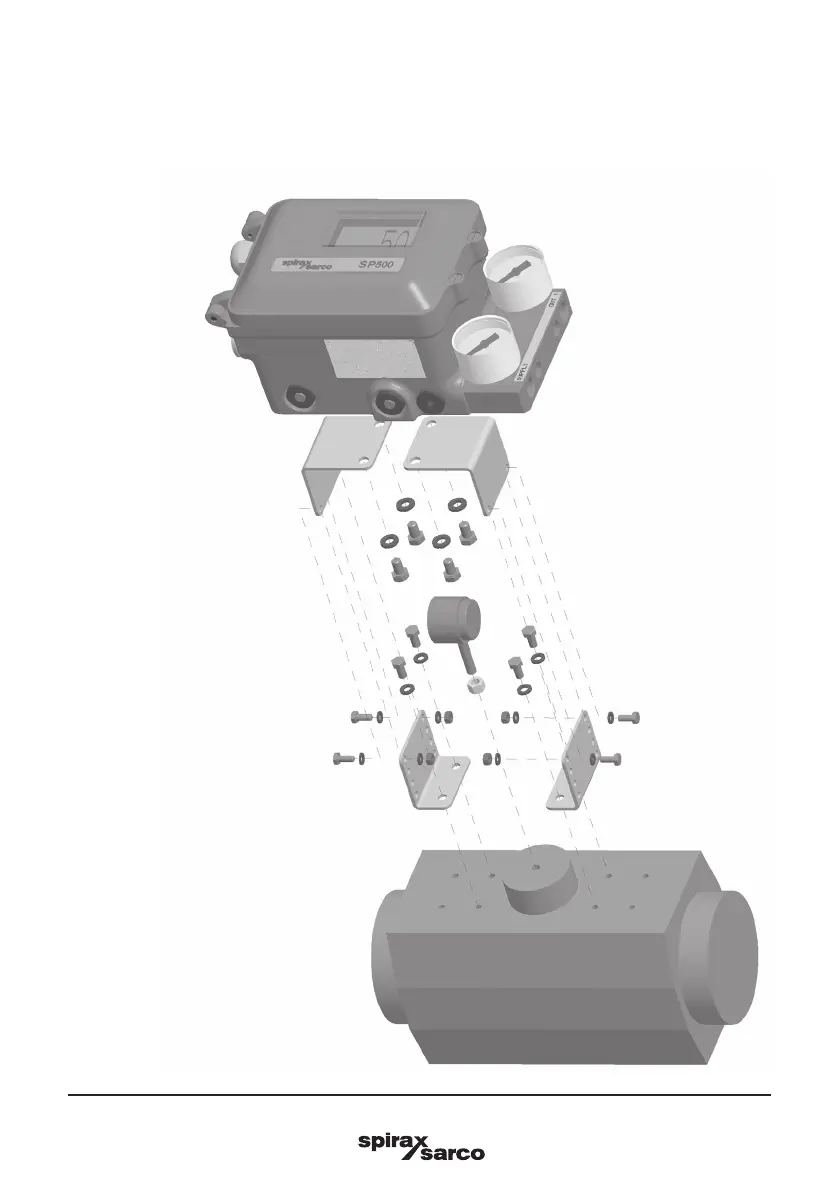

Fig. 37 Mounting kit
