IM-P343-35 CTLS Issue 5
20
start of text under grey section header box
start of text continuing from previous page
TRANSLATION RUN OVER
SP500 Electropneumatic Smart Positioner
5.2.1
Loosely attach the magnet bracket (2) to
the valve/actuator connector (refer to
Figures 24 and 25). Be sure it is
positioned horizontally (as shown in
Figure 25).

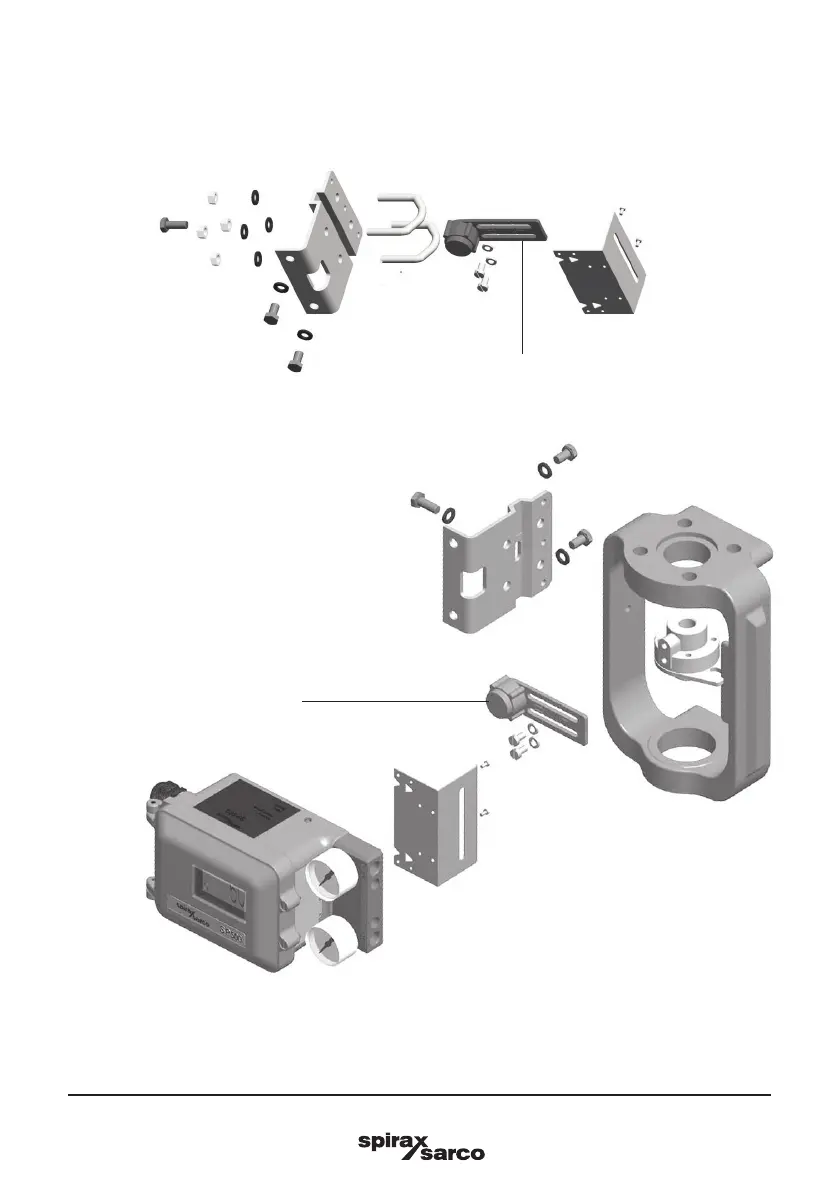

Fig. 24 Pillar mounting kit for a linear actuator
Fig. 25 Yoke mounting assembly for a linear actuator
5.2 Sequence for mounting an SP500 positioner to a
linear actuator
2
2
