SP500 Electropneumatic Smart Positioner
5.2.2

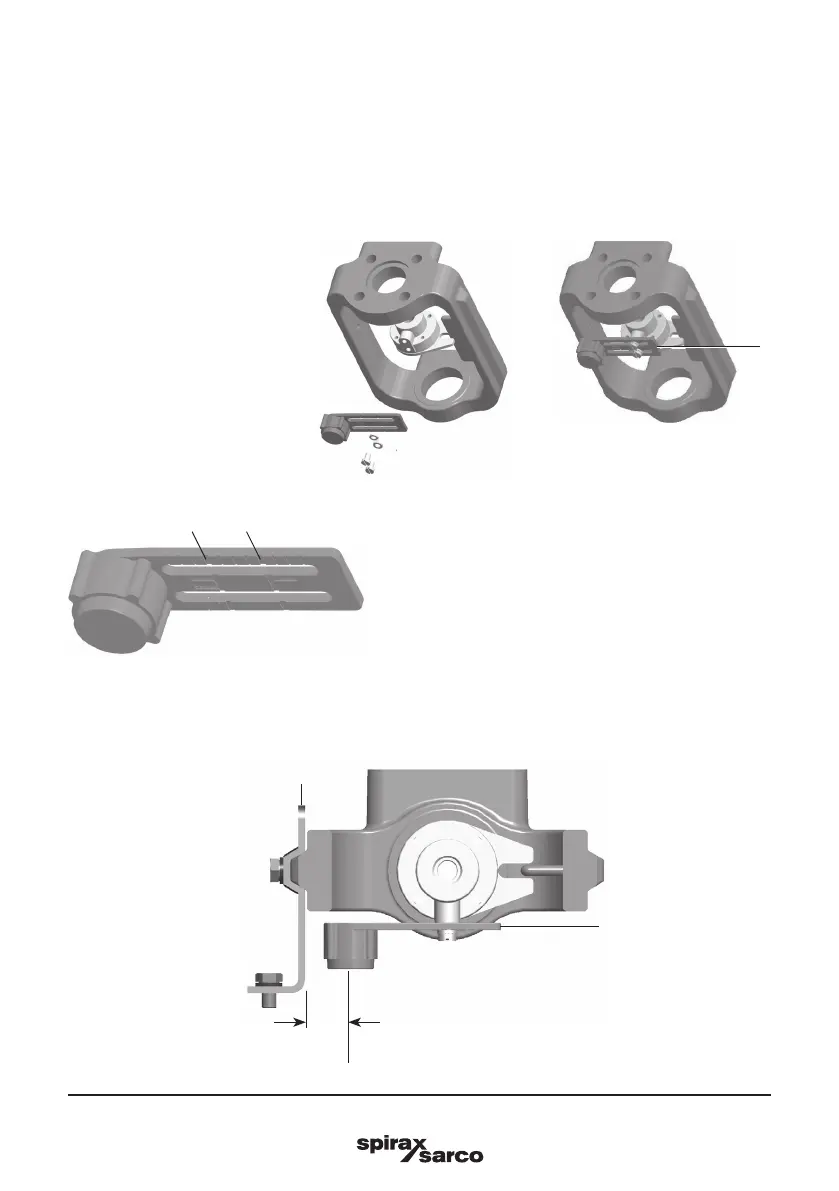

Slide the bracket (2) to the left or to the right (Figure 26) till the correct position is achieved. If you’re
using a Spirax Sarco actuator the correct position is impressed on the magnet bracket (Figure 27).
5.2.3
If you’re not using a Spirax Sarco actuator, slide the bracket till the distance 'A' between the center
of the magnet and the inner side of the mounting plate is 25 mm (Figure 28).
Fig. 28
A
Distance between the mounting plate and magnet
Fig. 27 Bracket markings
Assembled
2
Mounting plate
Bracket
Center of the magnet
PN1000PN9000
Fig. 26
