SP500 Electropneumatic Smart Positioner
5.2.4
Loosely attach the positioner mounting plate to the actuator as shown in the following pictures: for
the pillar actuator (Figure 29), and for the yoke actuator (Figure 30).
5.2.5
Locate the protection plate onto the back of the SP500 positioner housing and x in place (Figures
31 and 32).

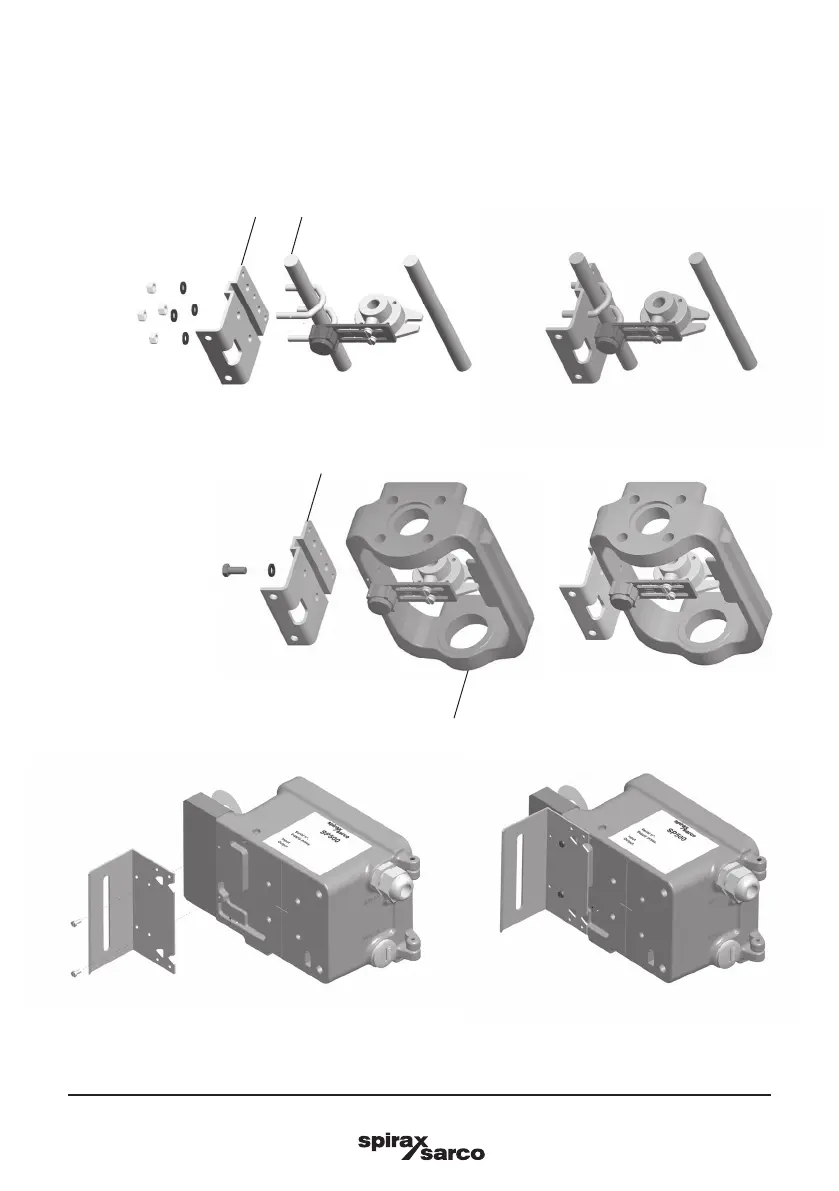

Fig. 29 Pillar actuator assembly
Pillar actuatorMounting plate
Fig. 30 Yoke actuator assembly
Yoke actuator
Mounting plate
Protection
plate
Fig. 31
Assembled
Assembled
Assembled
Fig. 32
