Spirax Sarco SP7-20 - Mounting on Linear Actuators; Attachment Kit for Linear Actuators

IM-P706-03 CTLS Issue 1
13
SP7-20 Smart Positioner

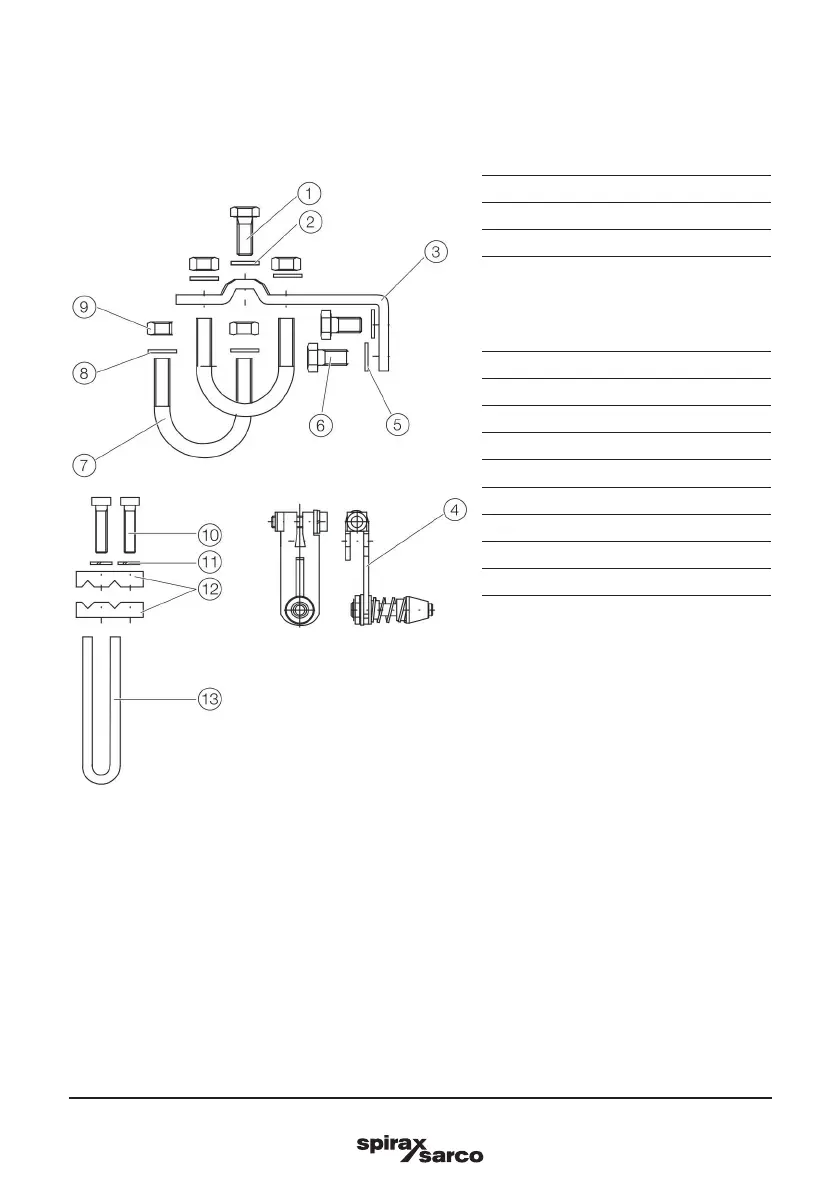

1 Screw
2 Washer
3 Mounting bracket
4 Lever with follower pin
(for mechanical stroke
10 to 35 mm [0.39 to 1.38"]
or
20 to 100 mm [0.79 to 3.94"])
5 Washers
6 Screws
7 U-Bolts
8 Washers
9 Nuts
10 Screws
11 Spring washers
12 Clamp plates
13 Follower guide
Note:
Items 7, 8 and 9 to be ordered seperately
3.1.2 Mounting on linear actuators
For mounting on a linear actuator in accordance with IEC 534 (lateral mounting as per NAMUR), the following
attachment kit is available:
Fig. 4
