IM-P706-03 CTLS Issue 1
14
SP7-20 Smart Positioner
Fig. 6
1. Attach the lever (6) to the feedback shaft (5) of the positioner (can only be mounted in one position
due to the cut shape of the feedback shaft).

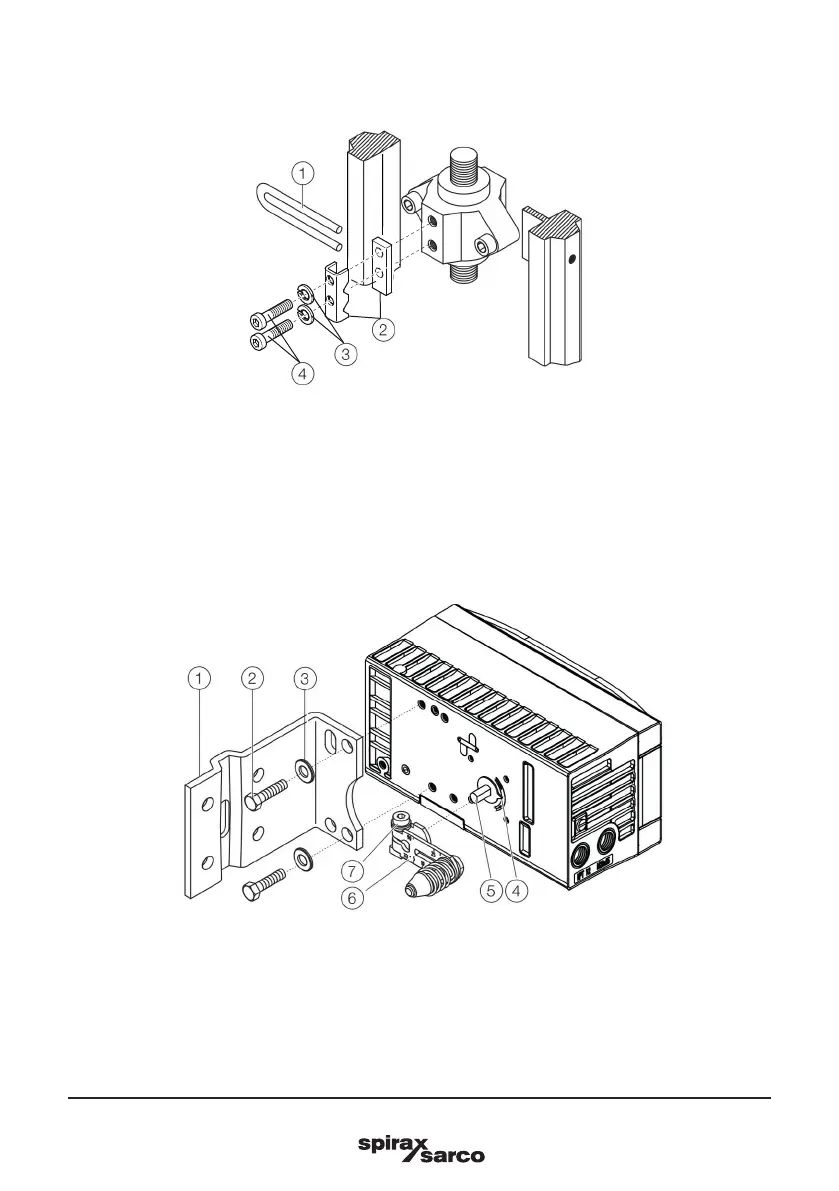

3.1.3 Attaching a follower guide to the actuator
Fig. 5
1. Tighten the screws so that they are hand tight
2. Attach the follower guide (1) and clamp plates (2) with screws (4) and spring washers (3) to the
actuator stem.
3.1.4 Mounting lever and bracket on the positioner
