IM-P736-02 EMM Issue 3
40
VLM30 In-Line Vortex Flowmeter

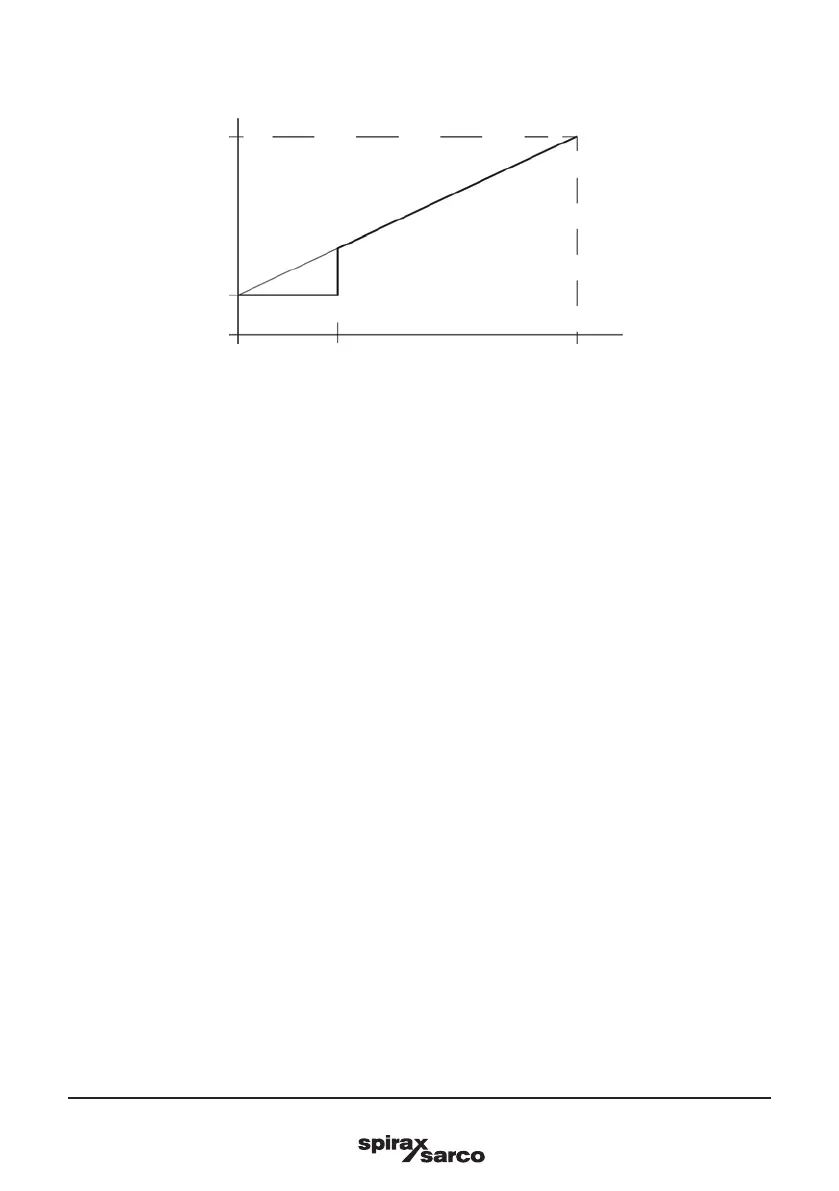

Fig. 24 Behaviour of the current output
The current output behaves as shown in the figure above.
Above the low flow, the current curve proceeds as a straight line in accordance with the flow rate.
-
Flow rate = 0, current output = 4 mA
-
Flow rate = Q
max
, current output = 20 mA
If the low flow cut-off is activated, flow rates below the low flow are set to 0 and the current
output set to 4 mA.
3.18.5 Low flow cut-off
Low flow
20 mA
4 mA
Q
max
