IM-P736-02 EMM Issue 3
59
VLM30 In-Line Vortex Flowmeter

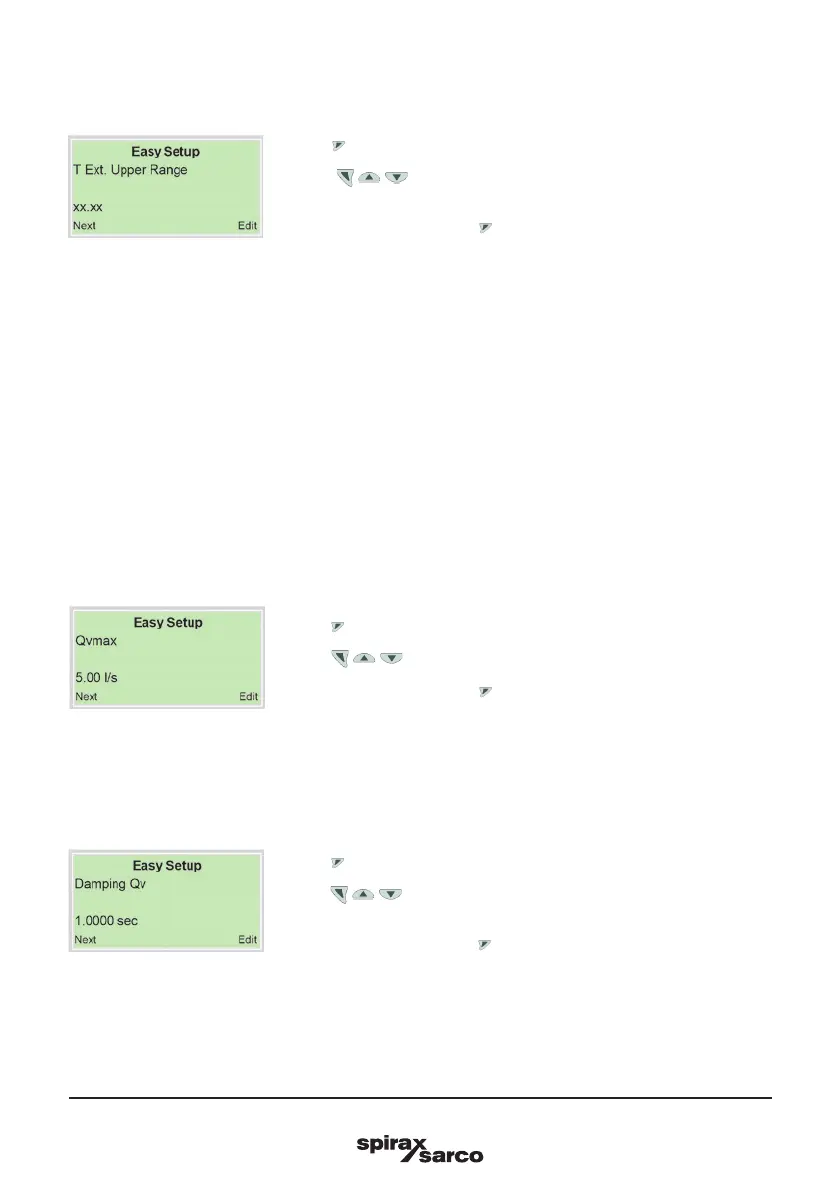

1. Use to call up the edit mode.
2. Use / / to set the desired damping for the respective process
value.
3. Confirm the selection with .
In the following menus, the measurement range limits for the external transmitters are fixed at the analog
input.
Upper value = 20 mA
Lower value = 4 mA
4. Use to call up the edit mode.
5. Use / / to set the measuring range limits for the respective
process value.
6. Confirm the selection with .
Configuration of the parameters dependent on the operating mode
Only for devices with HART communication!
The parameters shown in this position in the menu depend on the selected operating mode and are not
presented in detail here. Refer to Section 4.9.8 Operating modes and Section 5.10 Parameter descriptions
for detailed information!
4.8.8 Select the end value for the current output
Only for devices with HART communication!
Setting of the flow rate or energy quantity at which the current output is to output 20 mA (100%). The value
entered must be at least 15% of Q
max
DN.
1. Use to call up the edit mode.
2. Use / / to select the desired unit for the current output.
3. Confirm the selection with .
4.8.9 Adjusting the damping value
Adjustment of the damping for the respective process value [the value relates to 1 T (Tau)].
The damping relates to a step change in the flow rate or energy quantity or temperature.
The damping affects the instantaneous value in the process display and at the current output.
