VLM30 In-Line Vortex Flowmeter

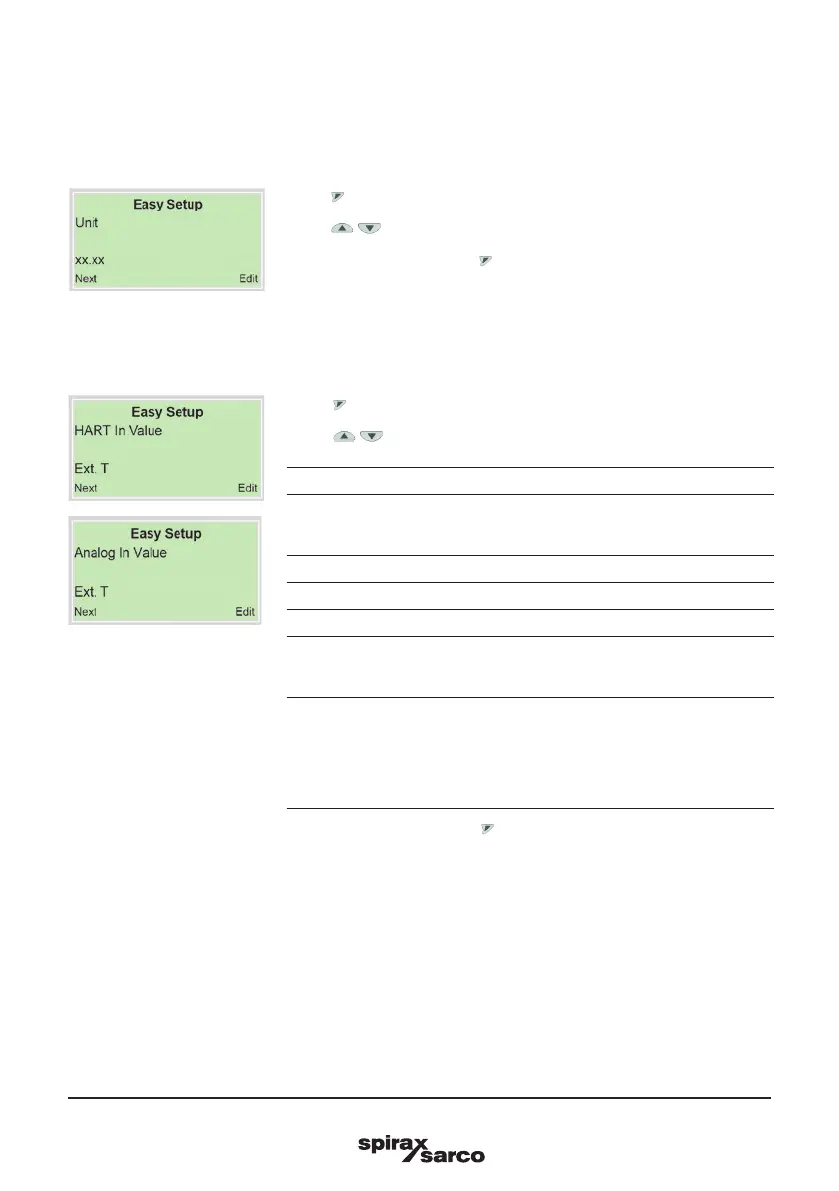

1. Use to call up the edit mode.
2. Use / to select the desired unit for the respective process value.
3. Confirm the selection with .
4.8.6 Selection of the units
In the following menus, the units for the following process values are selected: volume, mass, standard
volume, power, density, temperature, pressure, volume flowmeter, mass flowmeter, standard volume
flowmeter and energy meter.
4.8.7 Configuration of the analog/HART input
Only for devices with HART communication!
1. Use to call up the edit mode.
2. Use / to select the desired function for the analog/HART input.
HART In Value Analog In Value Function
Ext. T Ext. T
External temperature transmitter
downstream for energy
measurement.
Pressure Pressure External pressure transmitter.
Gas Content Gas Content External gas analyser.
Density Density External density transmitter.
Int.T Int.T
External temperature
transmitter upstream for energy
measurement.
- Ext. Cutoff
External (user configurable
>4 mA, >8 mA or >12 mA)
signal that forces the VLM30
current output to 4.0 mA
(zero flow), regardless of the
process flow.
3. Confirm the selection with .
