The RPM correction maps are divided in four groups of map values. A low, cruise, high cruise and
high map.
The Low map – this is the map for low throttle cruising or idle
The Cruise map – this is the map for normal cruising
The High Cruise map – this is the map for high throttle cruising
The High map is used for Wide Open Throttle (WOT) conditions.
6.7.4 Sensor Setup (Alt 4)
6.7.4.1 Active Sensors

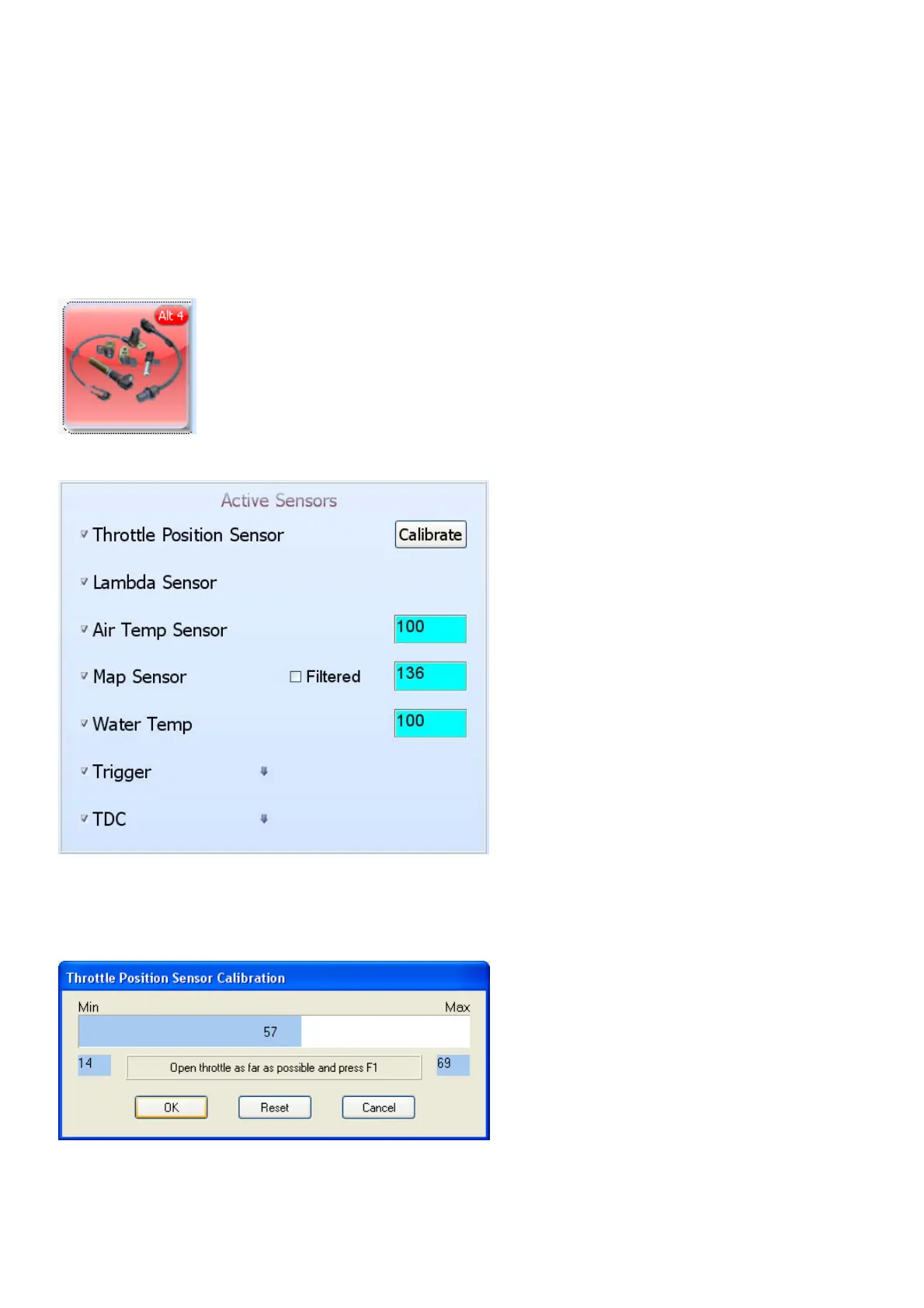

Select the different sensors that are to be used for your engine. If a sensor is not to be used, leave
the block unchecked. Also make sure the cable for it is properly isolated as there is power on the
leads that could short circuit, damaging the ECU as a result. Some of the sensors cannot be
altered or will be forced on by the firmware.
The TPS sensor needs to be calibrated. This is important for idling control, fuel prime and flood
control.
To calibrate the TPS, click on the Calibrate button. Click the Reset button. Press the fuel pedal in
completely and press F1. Release the pedal completely and press F1 again. Click the OK button.
