SPOT Mayhem 130 - Rear Shock Removal and Replacement; Initial Steps: Wheel and Pivot Pin Removal

24
1. Secure the bike/frame in a work stand and remove the rear wheel from the frame. This will
make access to the rear shock mounng hardware easier in step 5.

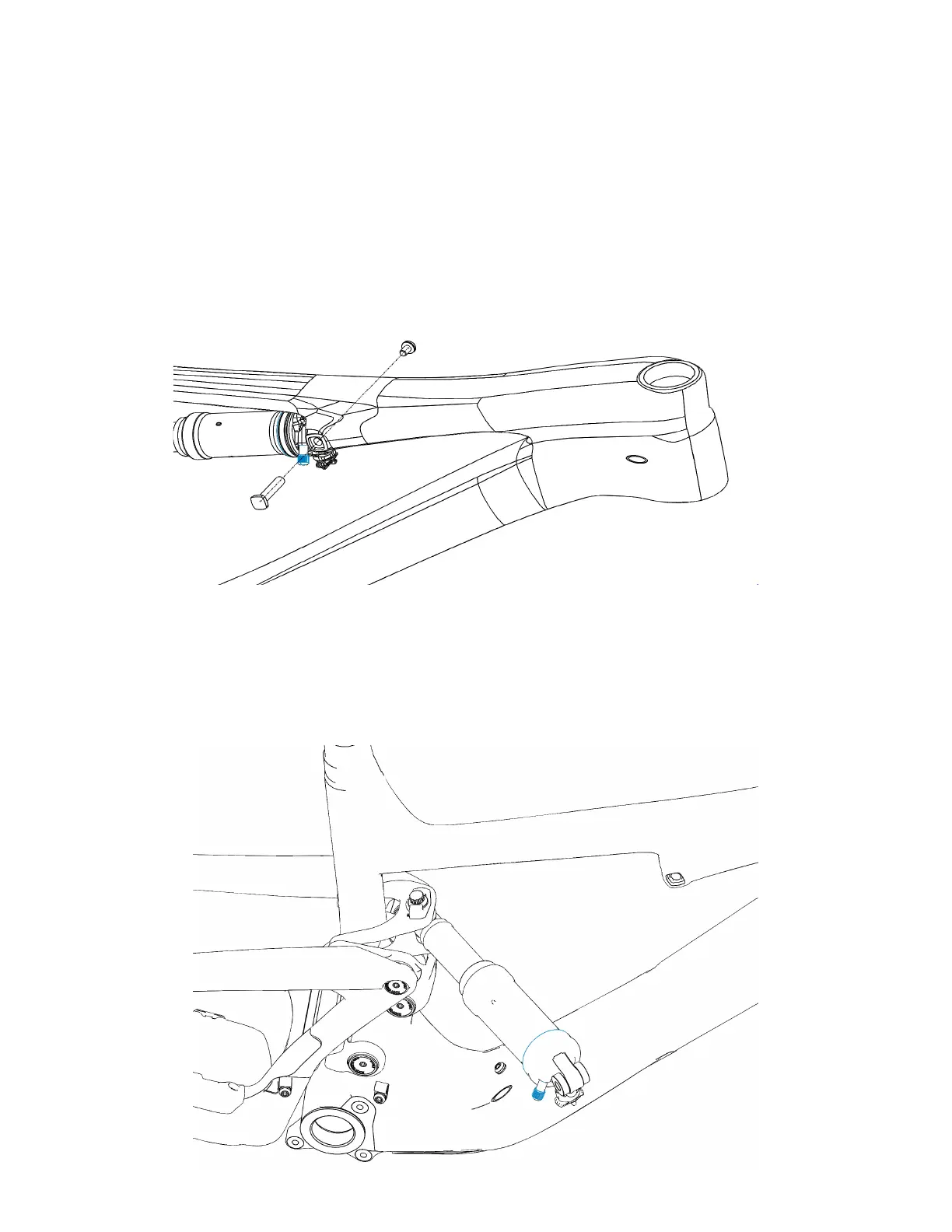

2. Using a T30 Torx tool on the non-drive side, remove the forward shock pivot pin and screw.
Rear Shock Removal/Replacement
3. Swing the shock downward from its forward mount being careful not to collide the shock with the
down tube
4. Swing the shock to the drive side of the frame for beer access to the rear mounng hardware. You
will feel some resistance if the rear mounng hardware is torqued to spec.
