SPOT Mayhem 130 - Rear Triangle Removal; Shock Removal and Link Axle Extraction

29
1. Remove the shock from the frame by following the direcons in the previous secon of this manual.
Insert a cloth towel between the shock yoke and the front of the seat tube to prevent paint damage
in the event of an accidental collision.

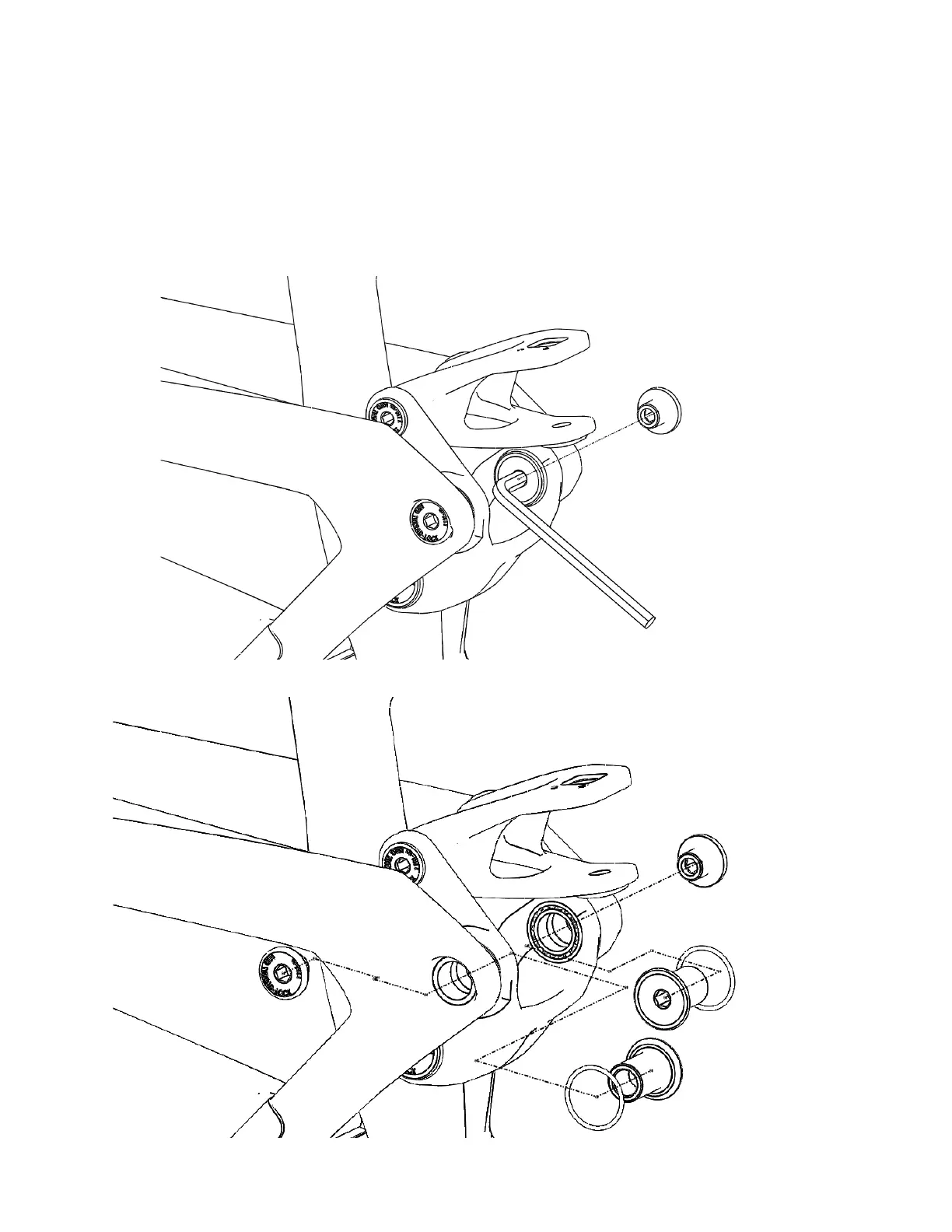

2. Using a T30 Torx L wrench and another T30 Torx tool, remove the link axles and o-rings from the
rear triangle/link pivot.
Rear Triangle Removal
