40

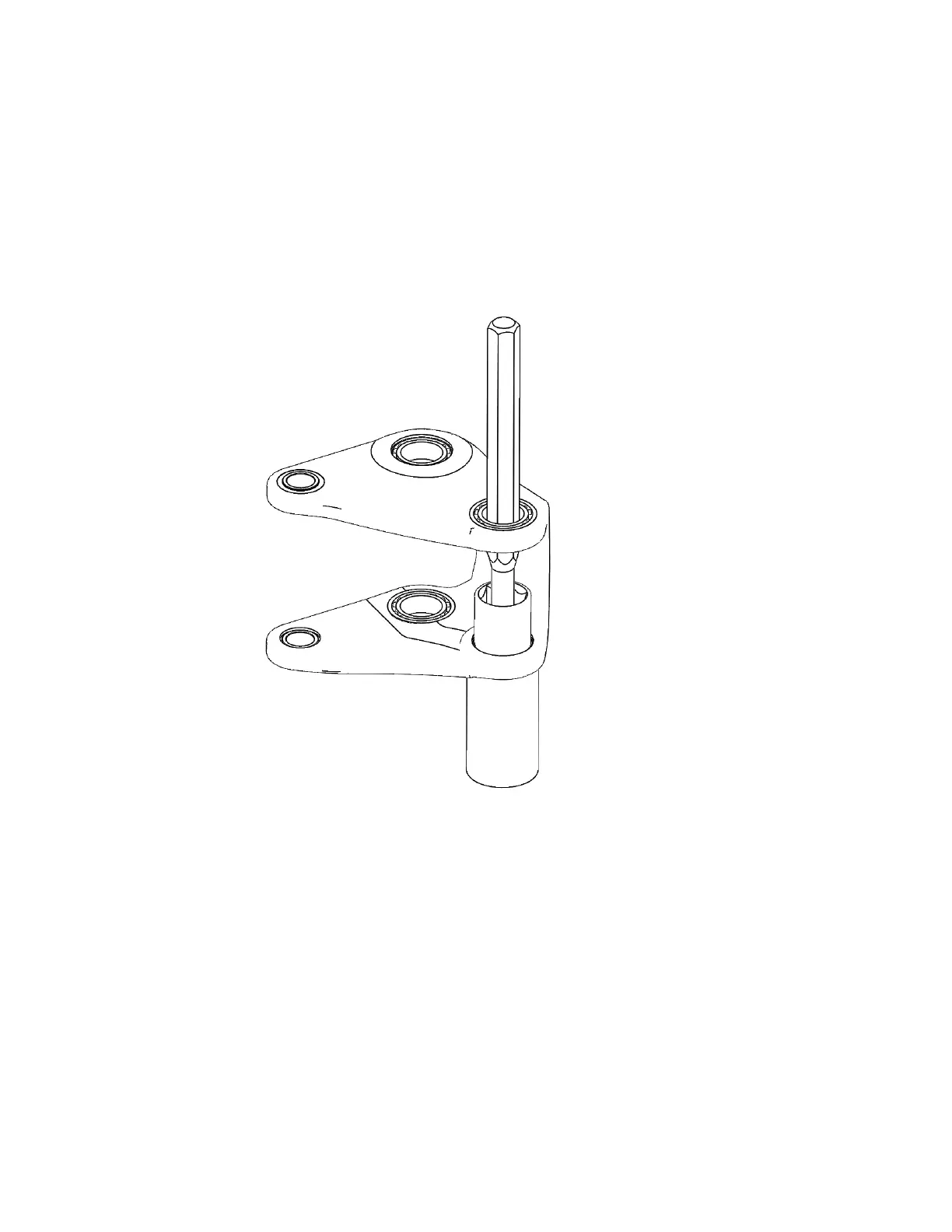

1. The seat tube pivot bearings in the rocker link are removed by pressing them outboard, away from
the centerline of the frame. Support the link as shown by your 27-30mm ID plasc tube. Combine
your 20-22mm outer diameter socket with an extension, punch, or other implement as shown. Begin
gently tapping with the hammer to push the bearing out of the link and into the tube:
Rocker Link Bearing Replacement
2. The shock yoke bearings in the link are removed in the same manner, but require smaller 13-14mm
socket and 23-25mm ID tube.
