SPOT Mayhem 130 - Rear Brake Hose Routing; Caliper Bracket and Hose Attachment

56 pages

To Next Page

To Previous Page

Rear Brake Hose Roung

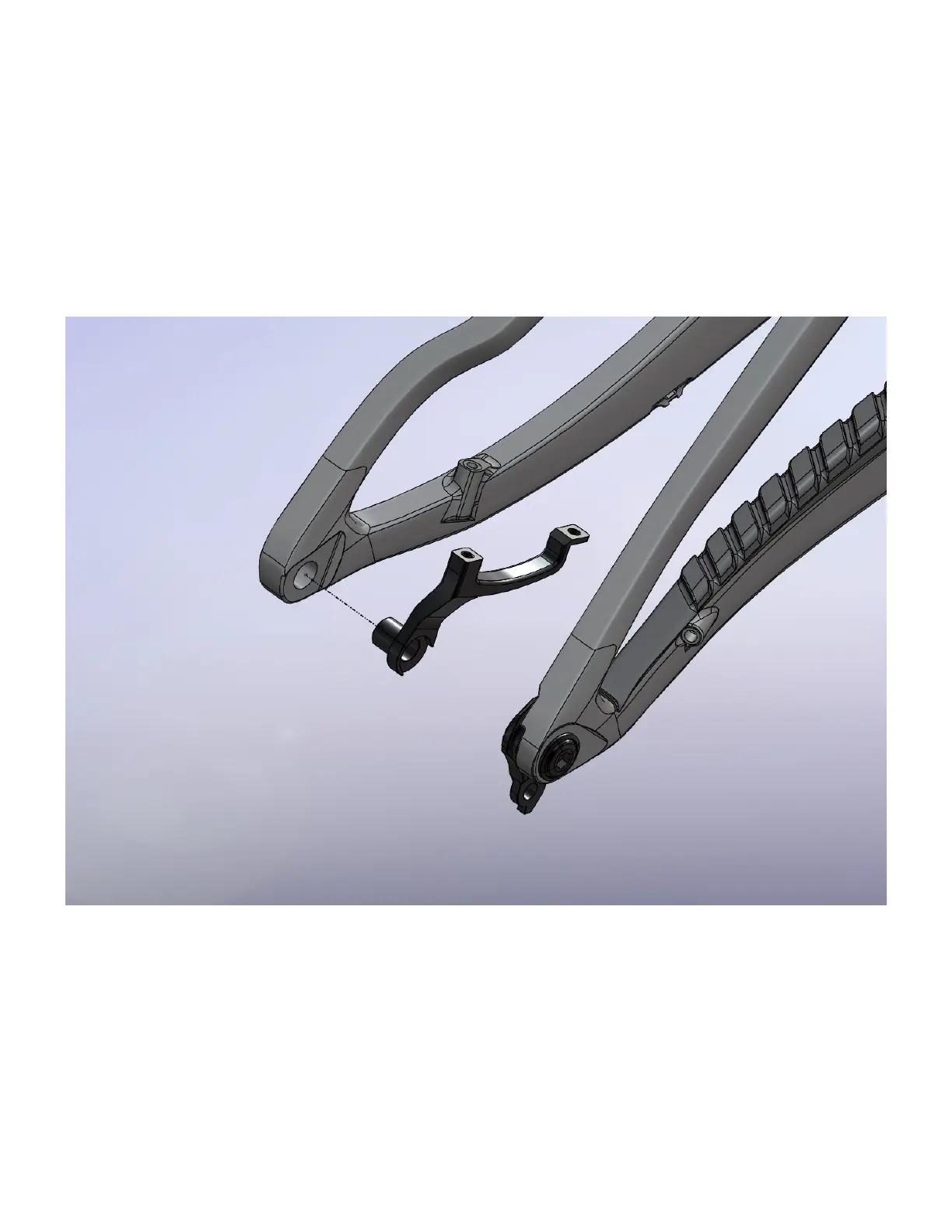

1. Begin by installing the rear brake caliper bracket, caliper and any applicable adapter if using a rotor

larger than 160mm. Please note the Mayhem frame is not compable with rotors larger than

180mm in the rear. The brake caliper bracket slides into the axle bore and is secured by installing

the forward caliper mounng screw.

2. Route the rear brake line starng from the caliper, aaching it to the rear triangle using the

supplied zip es on the cable saddles.
