SPOT Mayhem 130 - Rocker Link Reinstallation; Preparing and Installing Upper Link

43

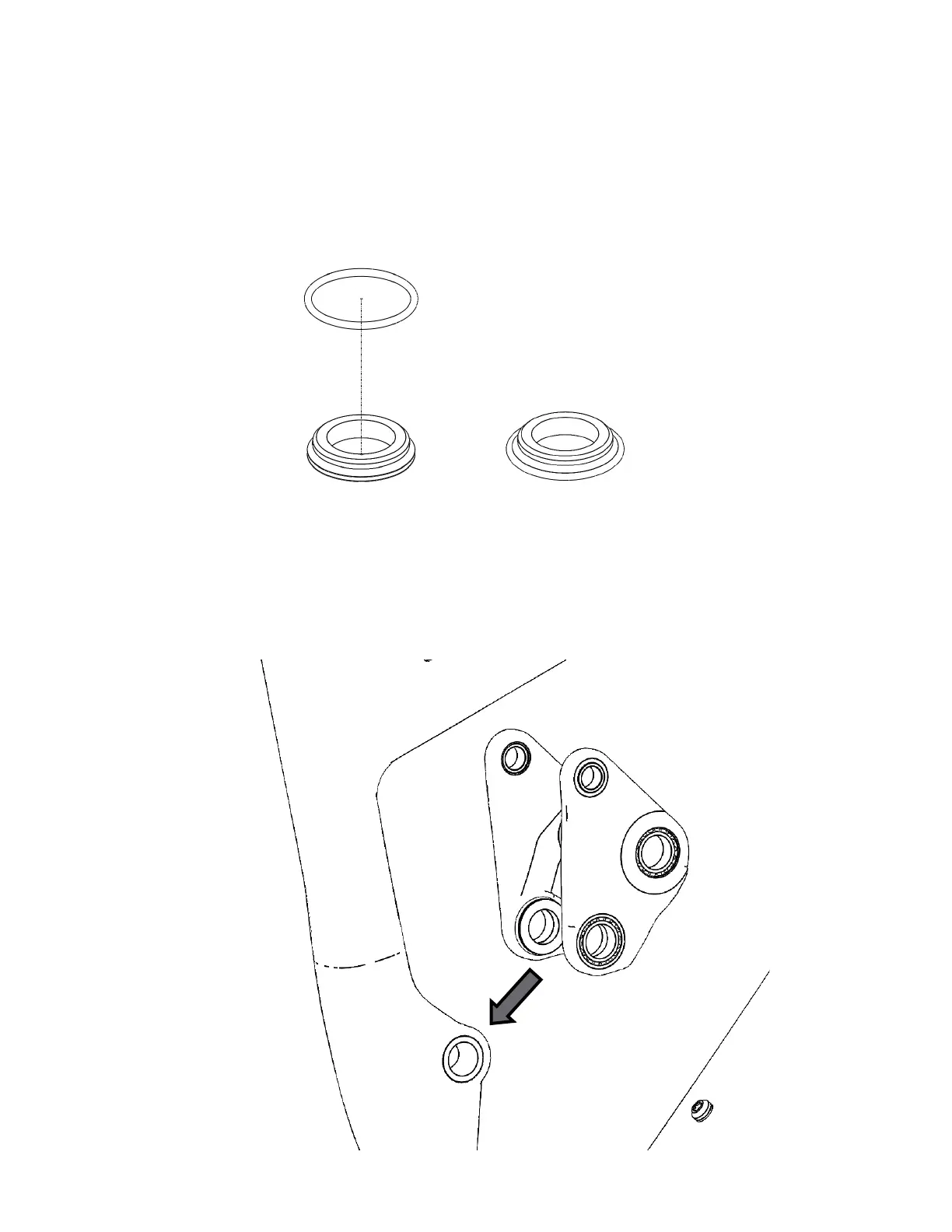

1. Prepare to reinstall the upper link by ng new 1.5 X 18mm inner diameter o-rings to the washers to
be installed between the link and the seat tube. The easiest way to do this is to lay the washer on a at
surface with the at side down. Then push the o-ring down from the top unl it sits in the installaon
groove:
Rocker Link Reinstallaon
2. Insert the washers, with o-rings posioned in the installaon grooves, into the inboard lower
bearing recesses on the link assembly. A small applicaon of grease can help to keep them in place
for link installaon. Being careful not to drop the washers/o-rings, and carefully slide the link
assembly rearward onto the seat tube at the pivot boss::
