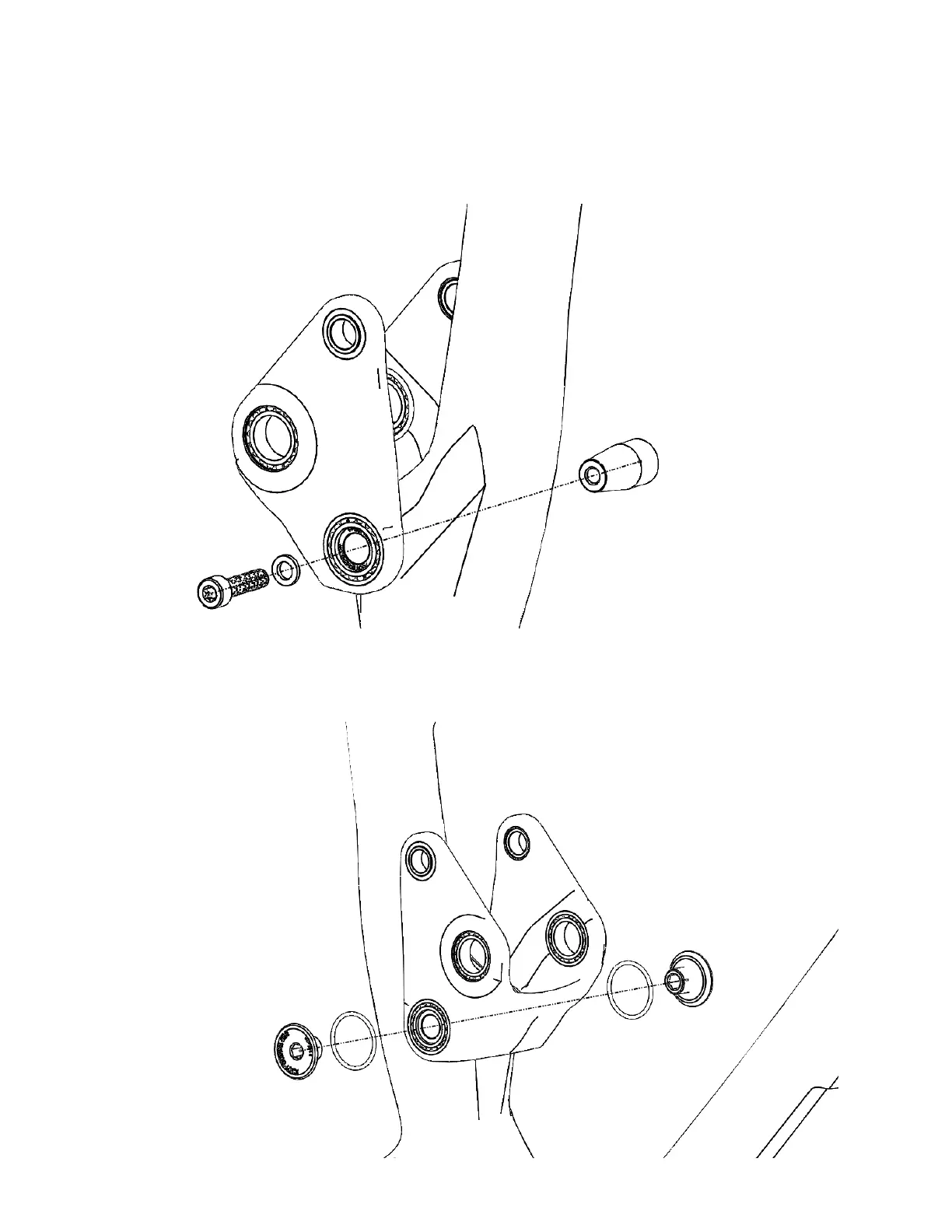

3. Insert the pivot axles, washer and preload screw into the seat tube pivot as shown. Note that the drive
side pivot axle is shorter than it’s corresponding part used in the main pivot. Do not apply thread
locker to the preload screw, do not grease the conical axles. Torque to 10N-m (88in-lb) using a T30
Torx tool:
4. Install the two outer pivot caps as shown. Apply medium thread locker and torque to 11N-m (97in-lb)
using a T30 Torx tool:
