34

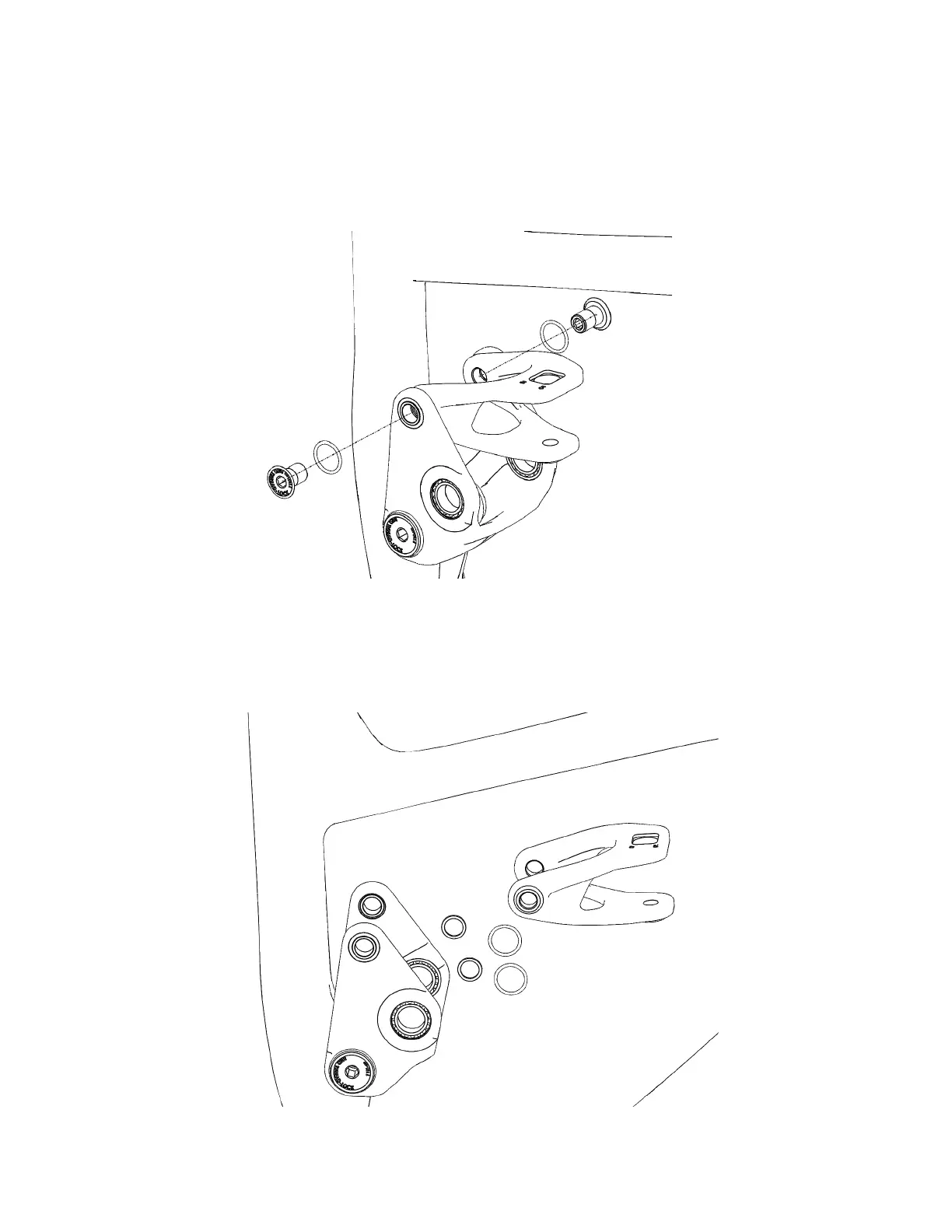

1. Remove the shock, and perform steps 1-3 of rear triangle removal as directed previously in this
manual. Using a T30 Torx tool, remove the shock yoke axles and o-rings from the link pivot as shown:
Shock Yoke and Link Removal
2. Pull the shock yoke forward to free it from the link. Be careful to catch and not lose the inner o-rings
and spacer washers from between the shock yoke and link:
