SPOT Mayhem 130 - Frame Geometry; Geometry Specifications (High Mode); Geometry Specifications (Calculated)

7

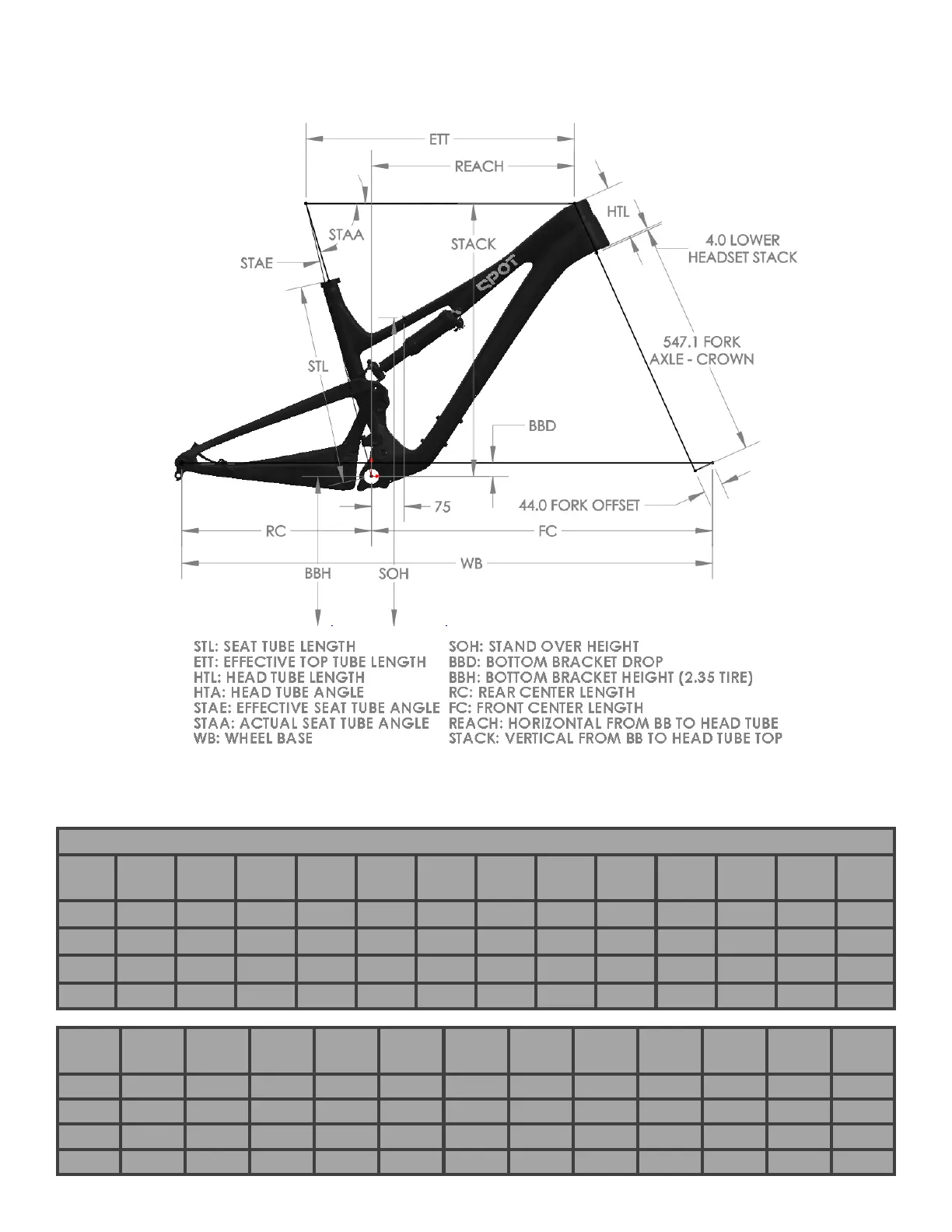

Mayhem 130 Frame Geometry
GEOMETRY - HIGH MODE
SIZE
STL
(mm) STL (in)
ETT
(mm) ETT (in) HTA
HTL
(mm) HTL (in) STAE STAA
WB
(mm) WB (in)
SOH
(mm)
SOH
(in)
S 356 14.0 569 22.4 65.7 90 3.5 75.5 71.8 1154 45.4 707 27.8
M 407 16.0 593 23.3 65.7 105 4.1 76 72.6 1185 46.7 707 27.8
L 457 18.0 615 24.2 65.7 120 4.7 76.5 73.5 1217 47.9 707 27.8
XL 495 19.5 637 25.1 65.7 130 5.1 77 74.3 1246 49.1 707 27.8
SIZE
BBD
(mm) BBD (in)
BBH
(mm) BBH (in)
RC
(mm) RC (in)
FC
(mm) FC (in)
REACH
(mm)
REACH
(in)
STACK
(mm)
STACK
(in)
S 31 1.2 344 13.5 435 17.1 719 28.3 415 16.3 597 23.5
M 31 1.2 344 13.5 435 17.1 750 29.5 440 17.3 612 24.1
L 31 1.2 344 13.5 435 17.1 782 30.8 465 18.3 626 24.6
XL 31 1.2 344 13.5 435 17.1 811 31.9 490 19.3 635 25.0
