SPOT Mayhem 130 - Page 30

30

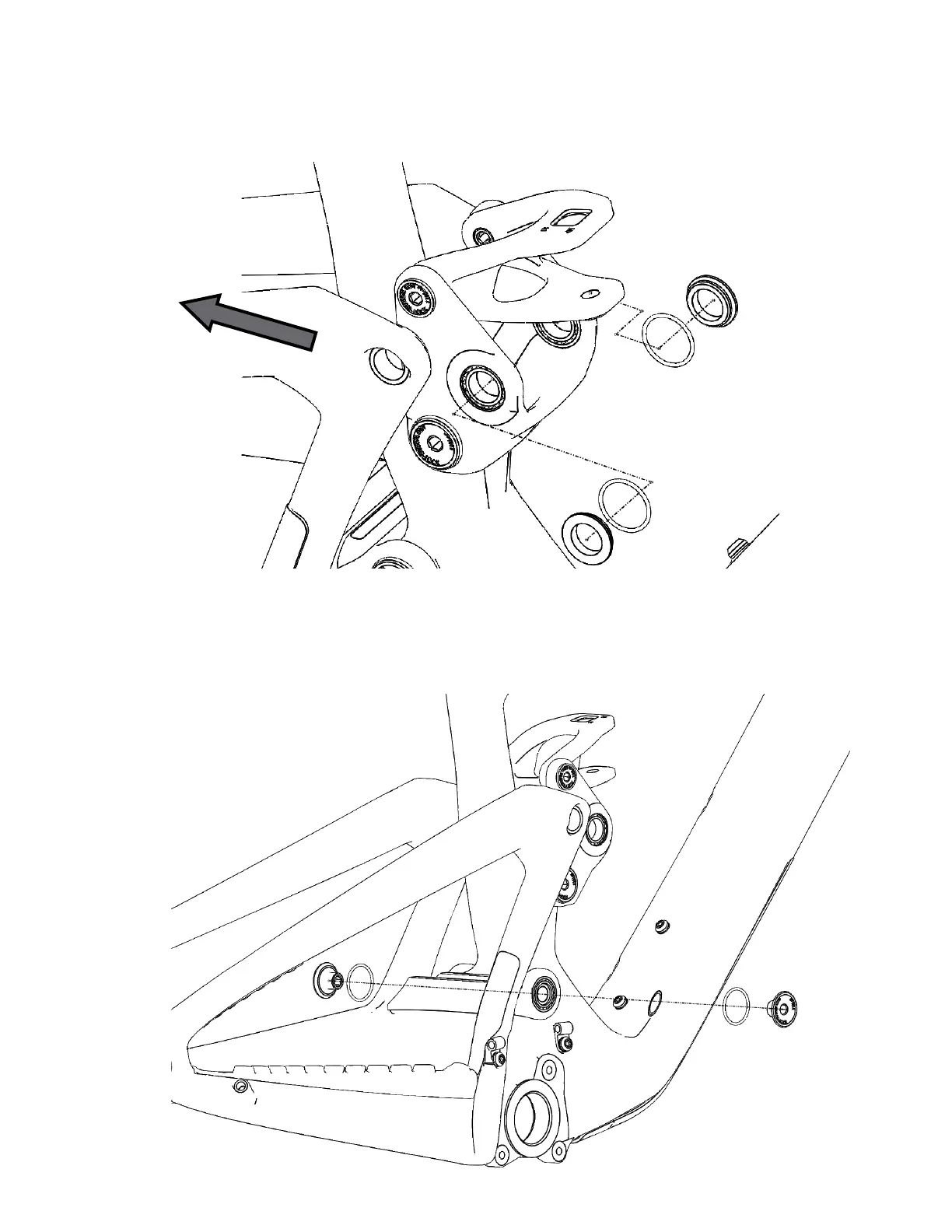

3. While holding onto the upper link, gently rotate the rear triangle rearward and remove the pivot
washers and o-rings from between the rear triangle and link:
4. Using a T30 Torx tool, remove the main pivot caps and o-rings:
