26

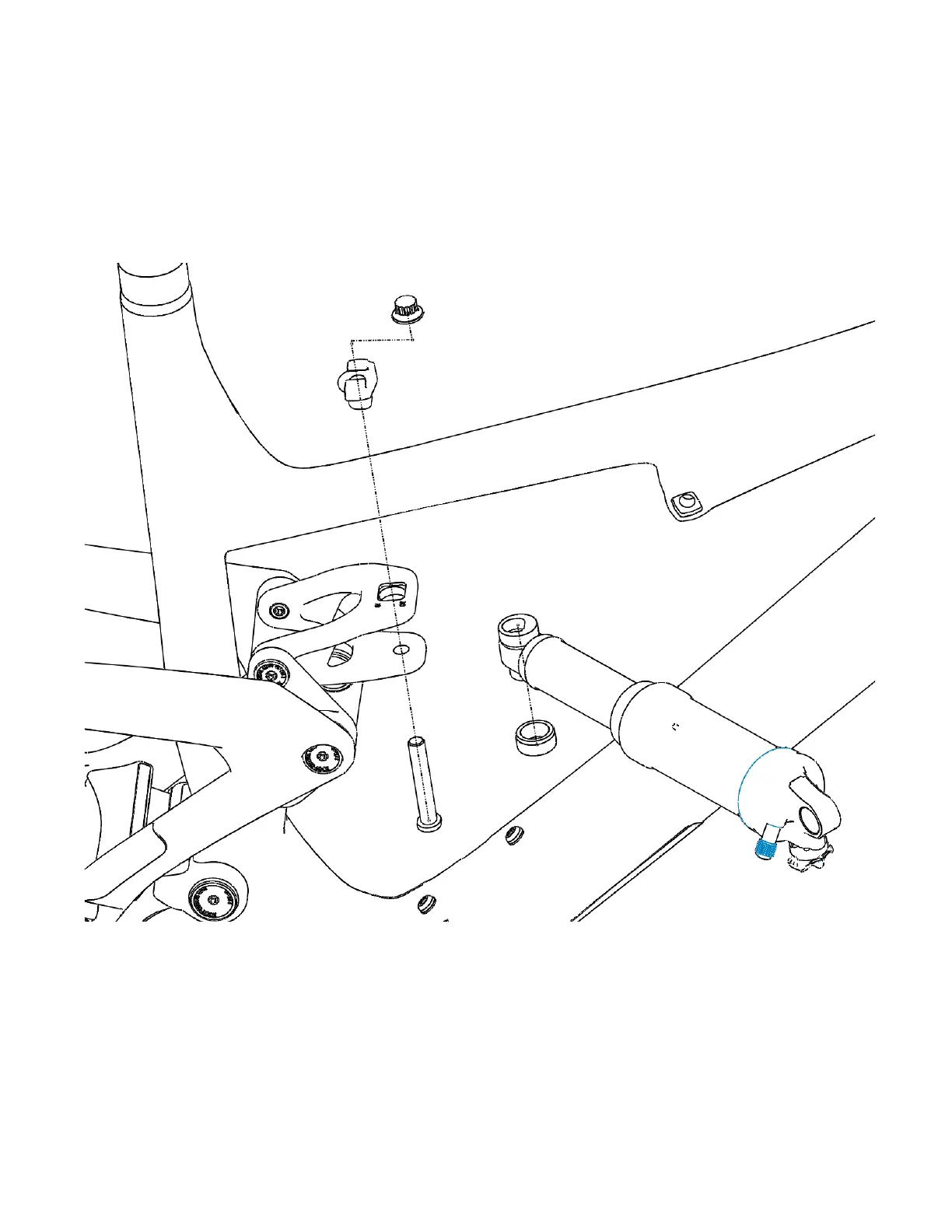

6. Using a 10mm closed end 12-point wrench, unscrew the upper nut from the rear shock
mounng hardware. This nut will li the geometry adjuster cap upward and o with it. Slide
the rear shock pin downward out of the shock yoke, taking care to clear the link. Then slide the
shock forward and sideways to free it from the yoke. Keep a hand on the rear eyelet reducer
hardware to prevent dropping the spacer.
