SPOT Mayhem 130 - Page 32

32

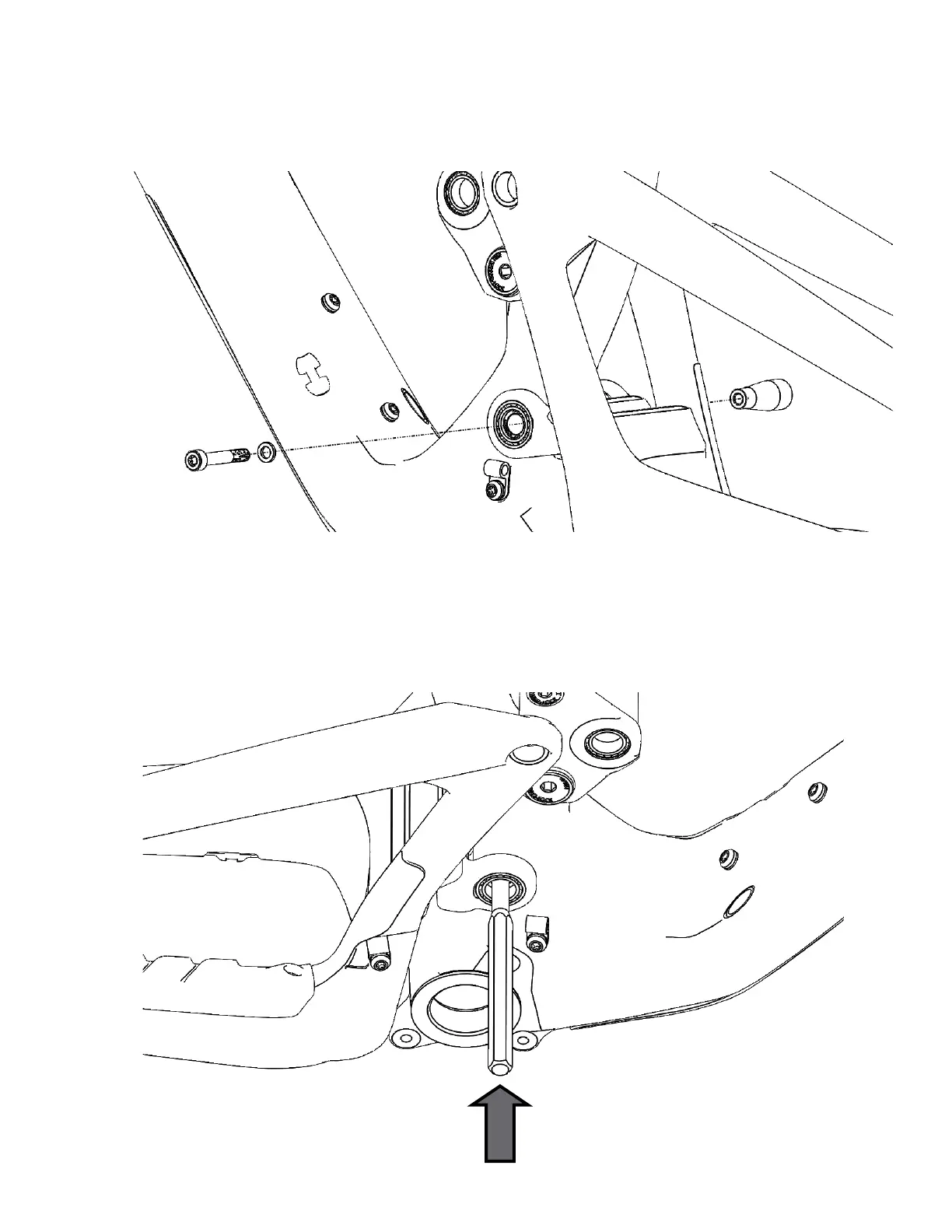

8. Insert the punch tool into the main pivot bore from where the drive side pivot axle was removed.
Ensure rm, even contact with the inner face of the non-drive side pivot axle. Strike the punch
sharply with a hammer to unseat the non-drive side pivot axle and remove:
7. Unscrew the preload screw from the drive side pivot axle and remove the screw, washer and axle
from the frame:
