37

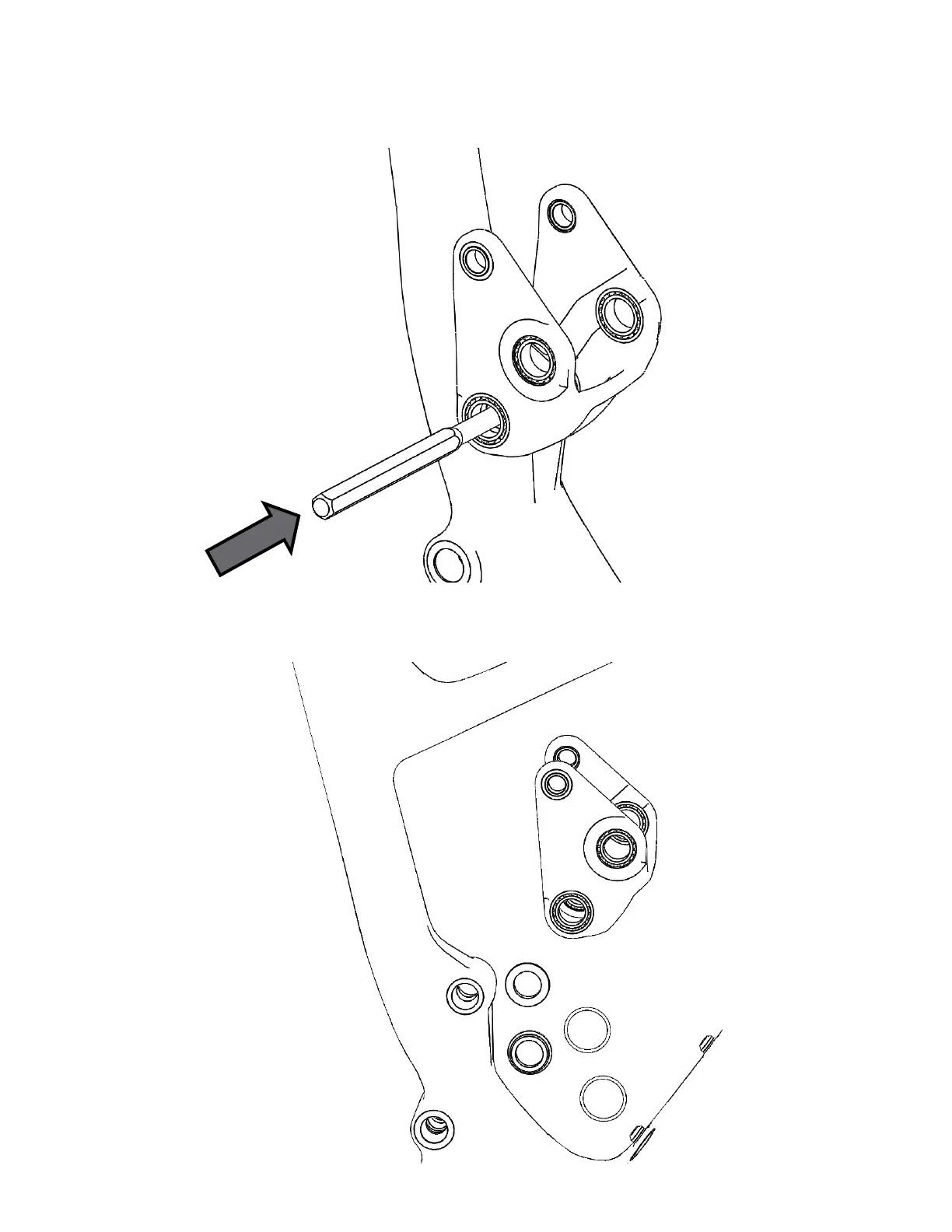

7. Insert the punch tool into the seat tube pivot bore from where the drive side pivot axle was
removed. Ensure rm, even contact with the inner face of the non-drive side pivot axle. Strike the
punch sharply with a hammer to unseat the non-drive side pivot axle and remove:
8. The link is now free to slide forward and away from the front triangle. Place a hand under the
seat tube pivot to catch the inner pivot washers and o-rings:
