47

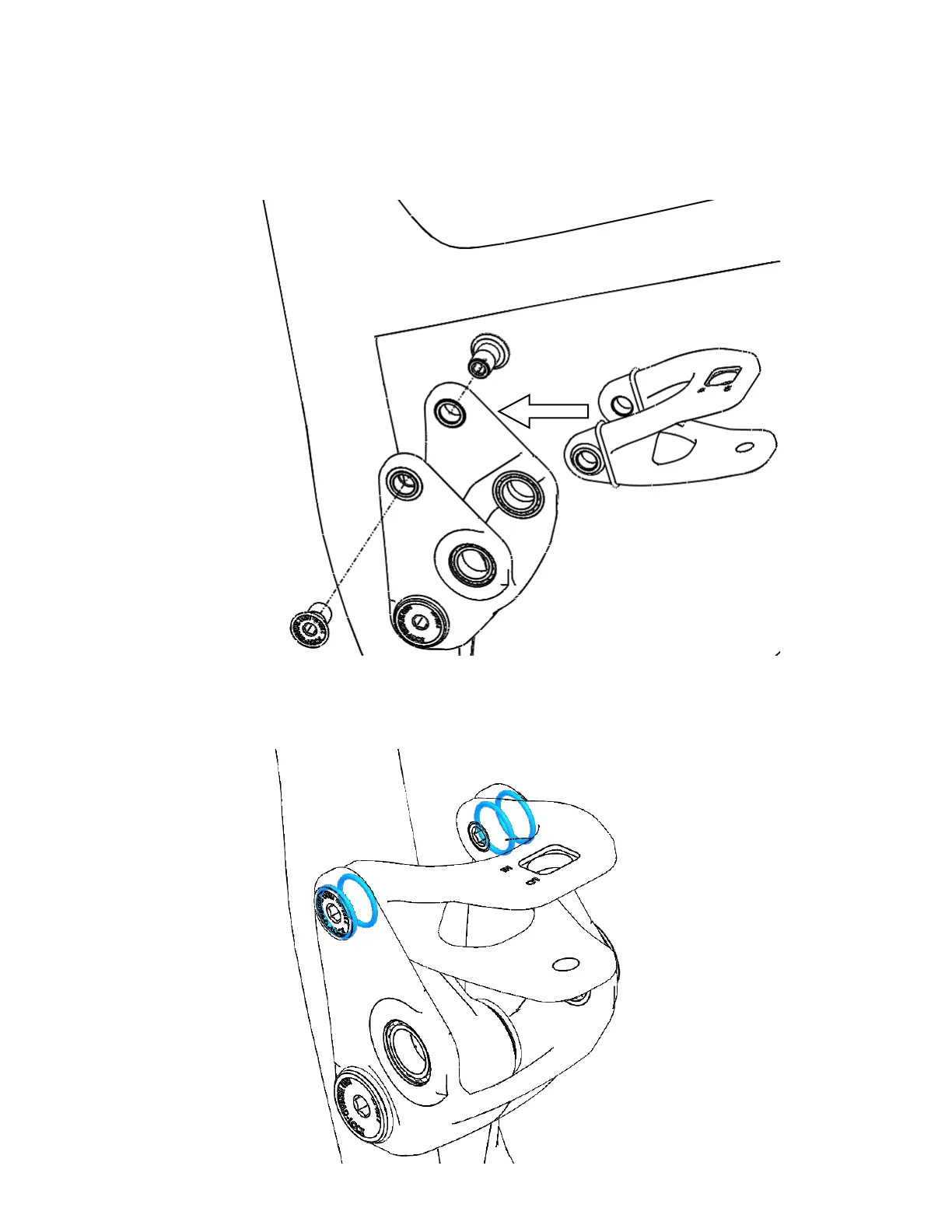

9. Apply fresh medium thread locker to the pivot yoke axles. Slide the pivot yoke into the upper link and
align the yoke with the upper pair of link bearings. Install the pivot yoke axles and torque to 11N-m
(91in-lb) using a T30 Torx tool:
10. Using a pick tool, small screwdriver, or ngernail, pull the inner o-rings into the seal posion between
the yoke and the link. Install the outer pair of 1 X 13mm o-rings on the heads of the pivot axles as
shown:
