SPOT Mayhem 130 - Page 49

49

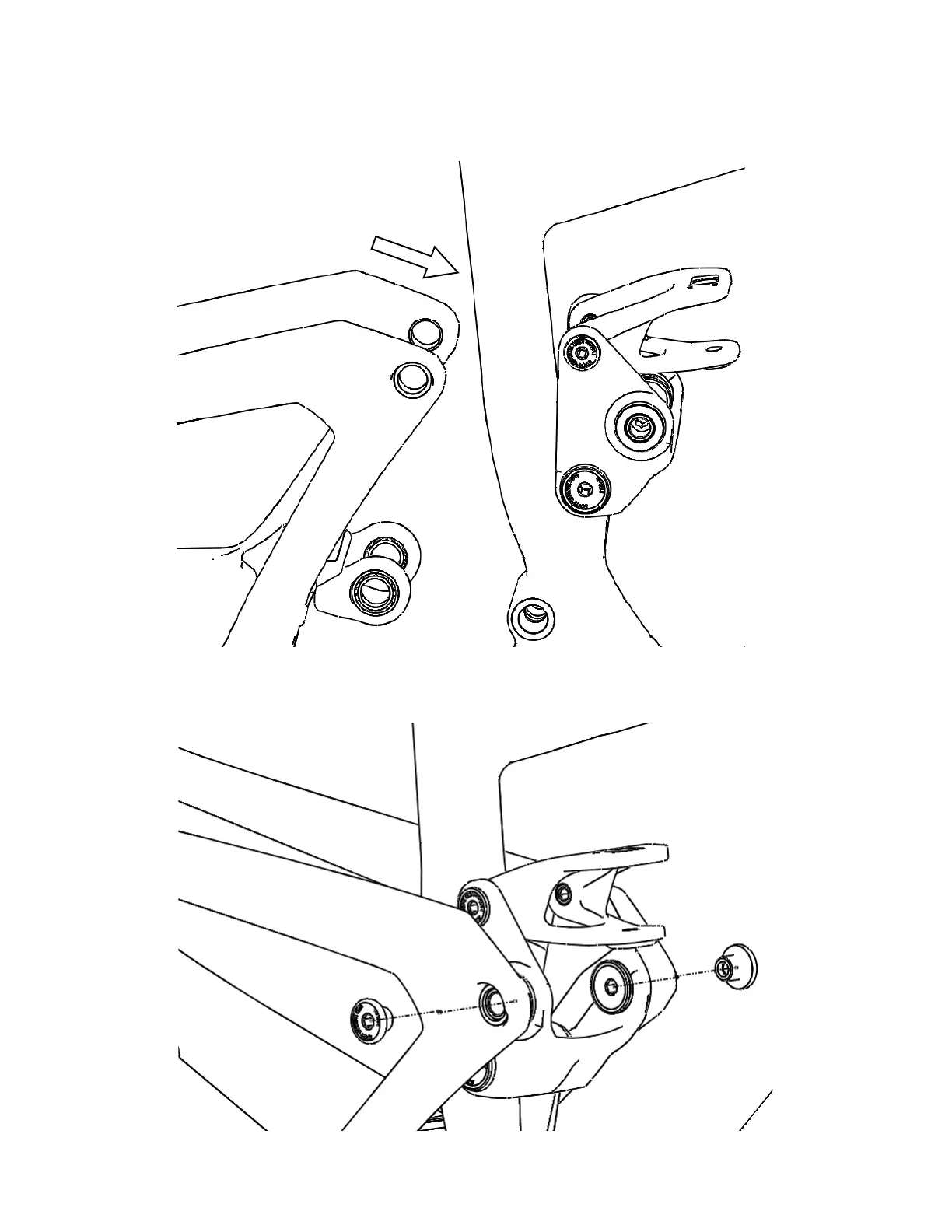

3. Slide the rear triangle assembly onto the upper pivot of the link, and push the link axles outward to
hold the rear triangle in place:
4. Install the upper pivot caps with medium strength thread locker. Torque to 11N-m (97 in-lb) using T30
Torx tools:
