SPOT Mayhem 130 - Page 53

53

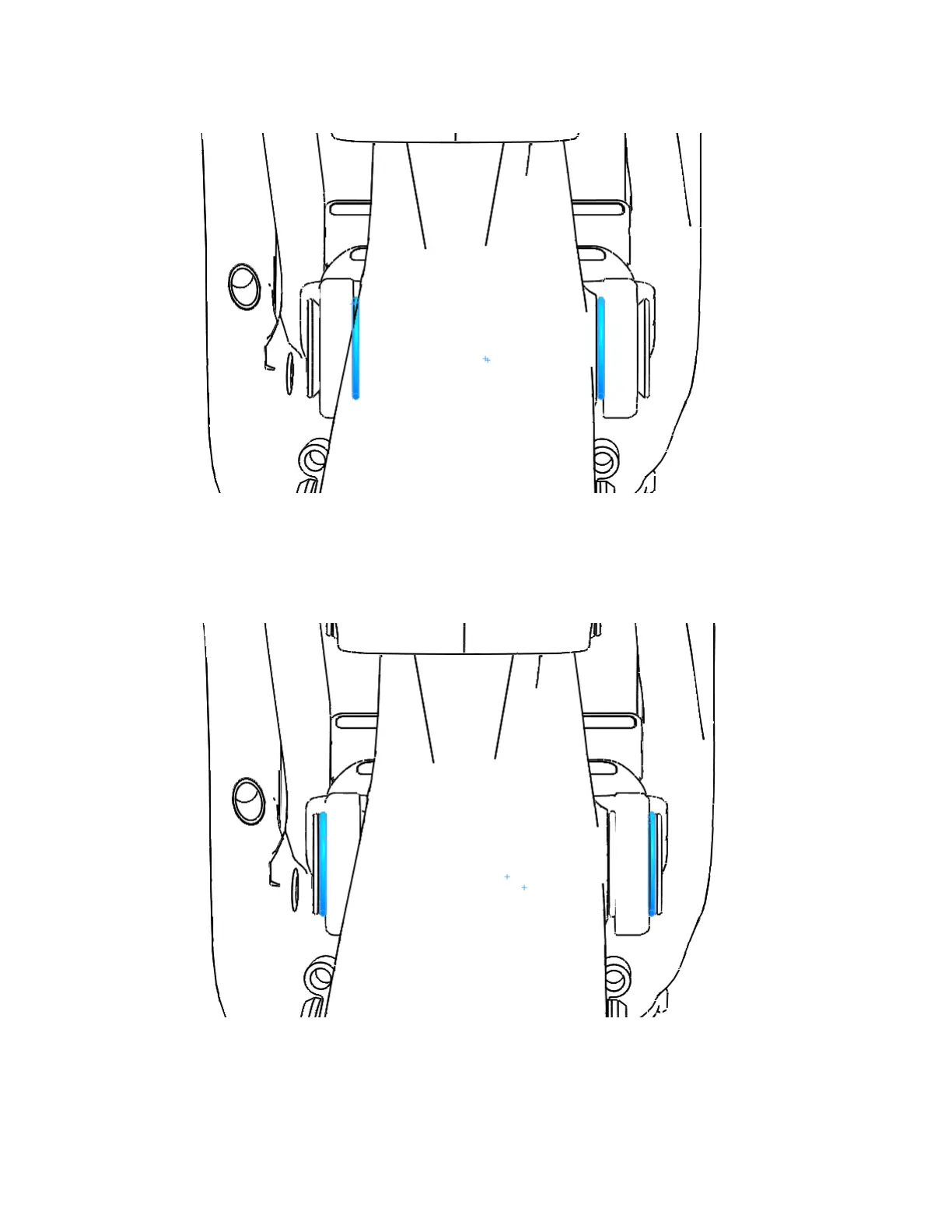

10. Pull the inboard o-rings into place between the pivot clevis and the frame:
11. Install the outer 1.5 X 18mm inner diameter o-rings over the pivot caps as shown:
12. The nal step is to re-install the rear shock as directed in the shock removal/replacement secon
starng on page 20 of this manual.
