7. Ws+ Spare Parts, Dimensions
20

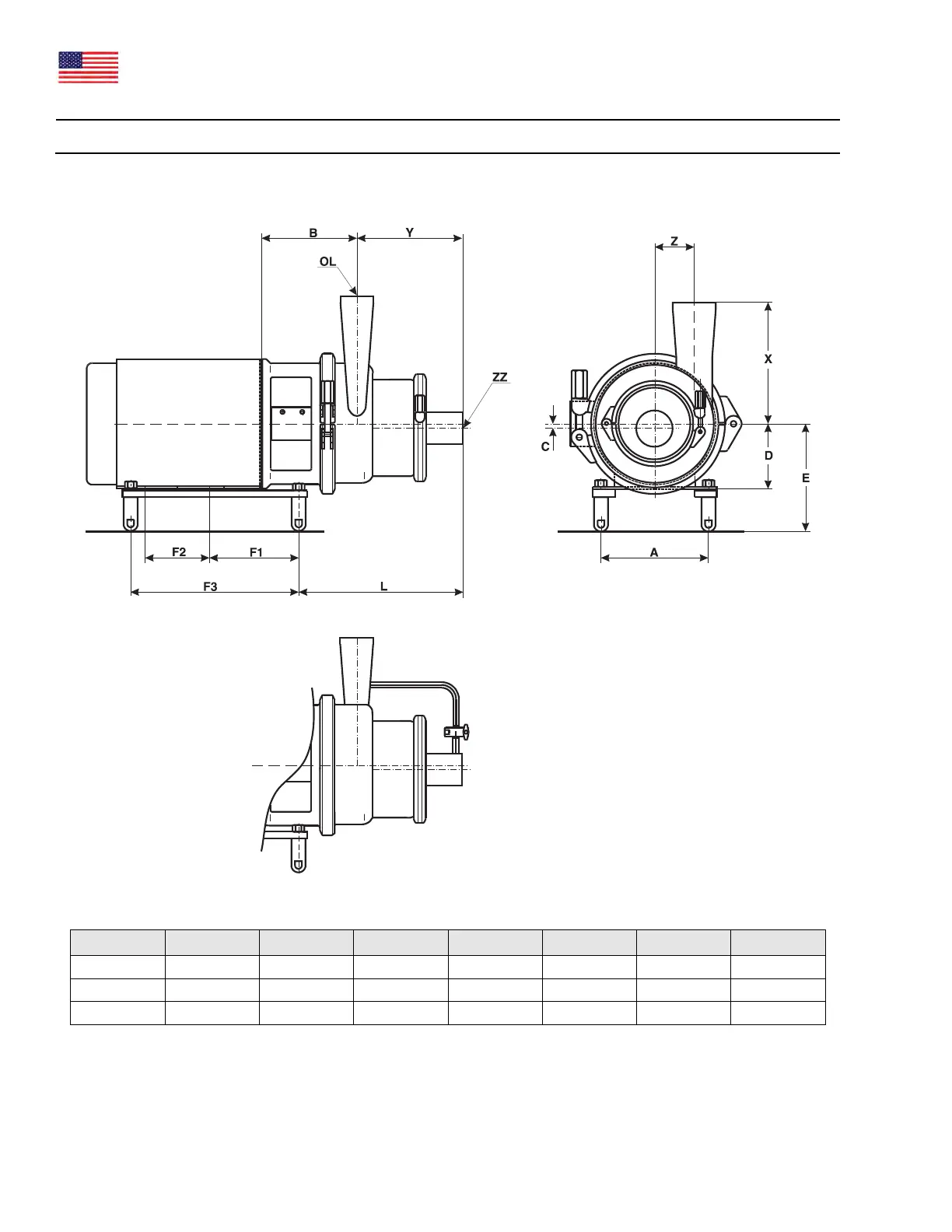

7.1 Pump Dimensions
Inlet/Outlet Size Bevel Seat Threaded PV TRI Clamp APC Clamp ISS
Male Pipe
Thread
150#Flange
2.0” (51 mm) 0.750” (19 mm) 0.750” (19 mm) 1.125” (29 mm) 0.750” (19 mm) 1.125” (29 mm) 1.687” (43 mm) 1.187” (30 mm)
2.5” (63 mm) 0.844” (21 mm) 0.844” (21 mm) 1.125” (29 mm) 0.844” (21 mm) 1.125” (29 mm) 2.187” (55 mm) 1.187” (30 mm)
3.0” (76 mm) 0.906” (23 mm) 0.906” (23 mm) 1.125” (29 mm) 0.906” (23 mm) 1.125” (29 mm) 2.250” (57 mm) 1.500” (38 mm)
