APV
381497 USA 10/2014
7. Ws+ Spare Parts, Dimensions
30

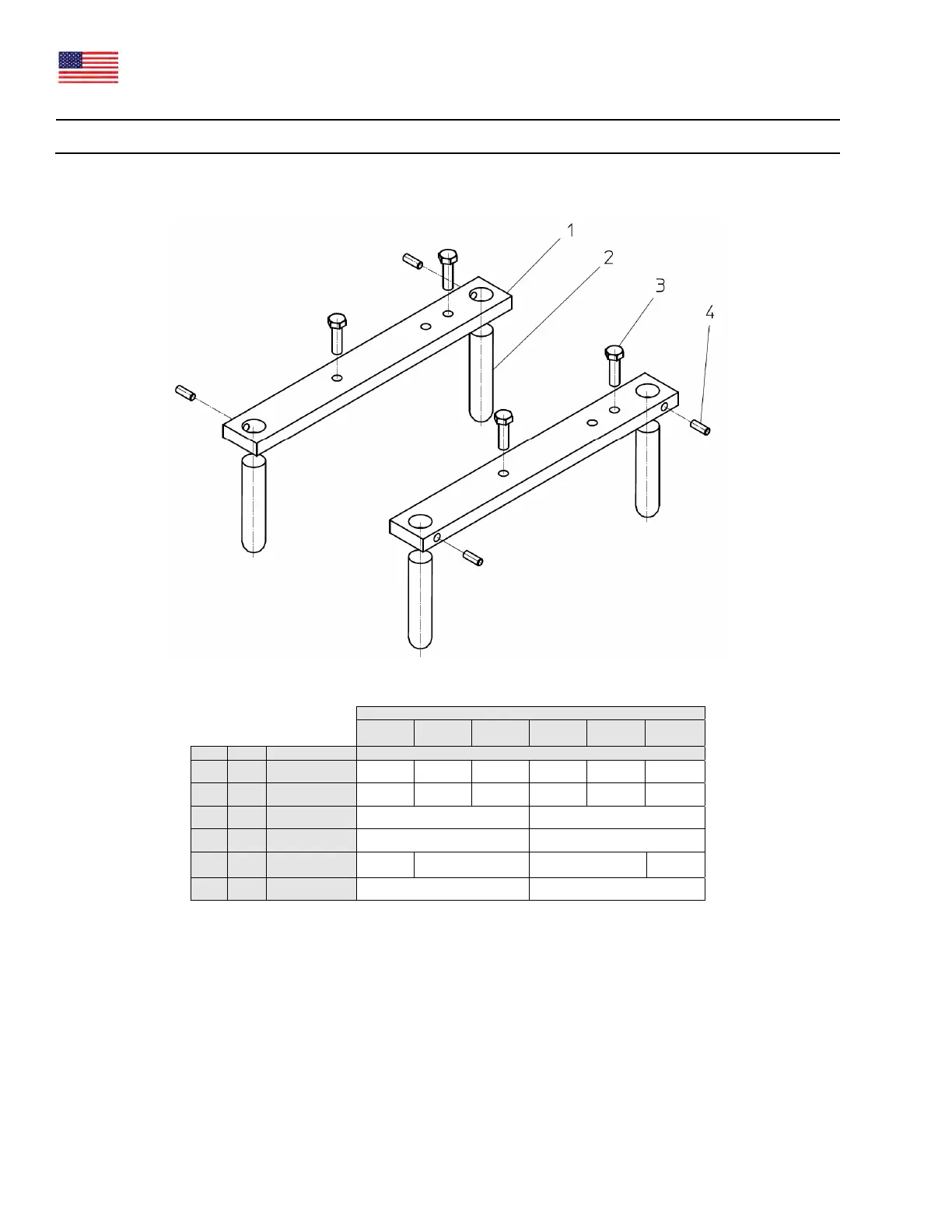

7.8 Frame
Motor
145TC
182-
184TC
213-
215TC
254-
256TC
284-
286TSC
324TSC
Pos Qty Description Part No.
-- -- Frame cpl. L110256 L110255 L110254 L110253 L110252 L110251
1 2 Side bar L110262 L110261 L110260 L110259 L110258 L110257
2 4 Leg ¾” L110264 -----
2 4 Leg 1” ----- L110263
3 4 Screw
5/16-18
x 3/4
3/8-16 x 1 1/2-13 x 1 1/8
5/5-11 x
1 1/4
4 2 Screw 1/4-20 x 1/2 SQ.HD 1/4-20 x 5/8 SQ.HD
