SPX APV Ws+20/15 User Manual

APV
381497 USA 10/2014

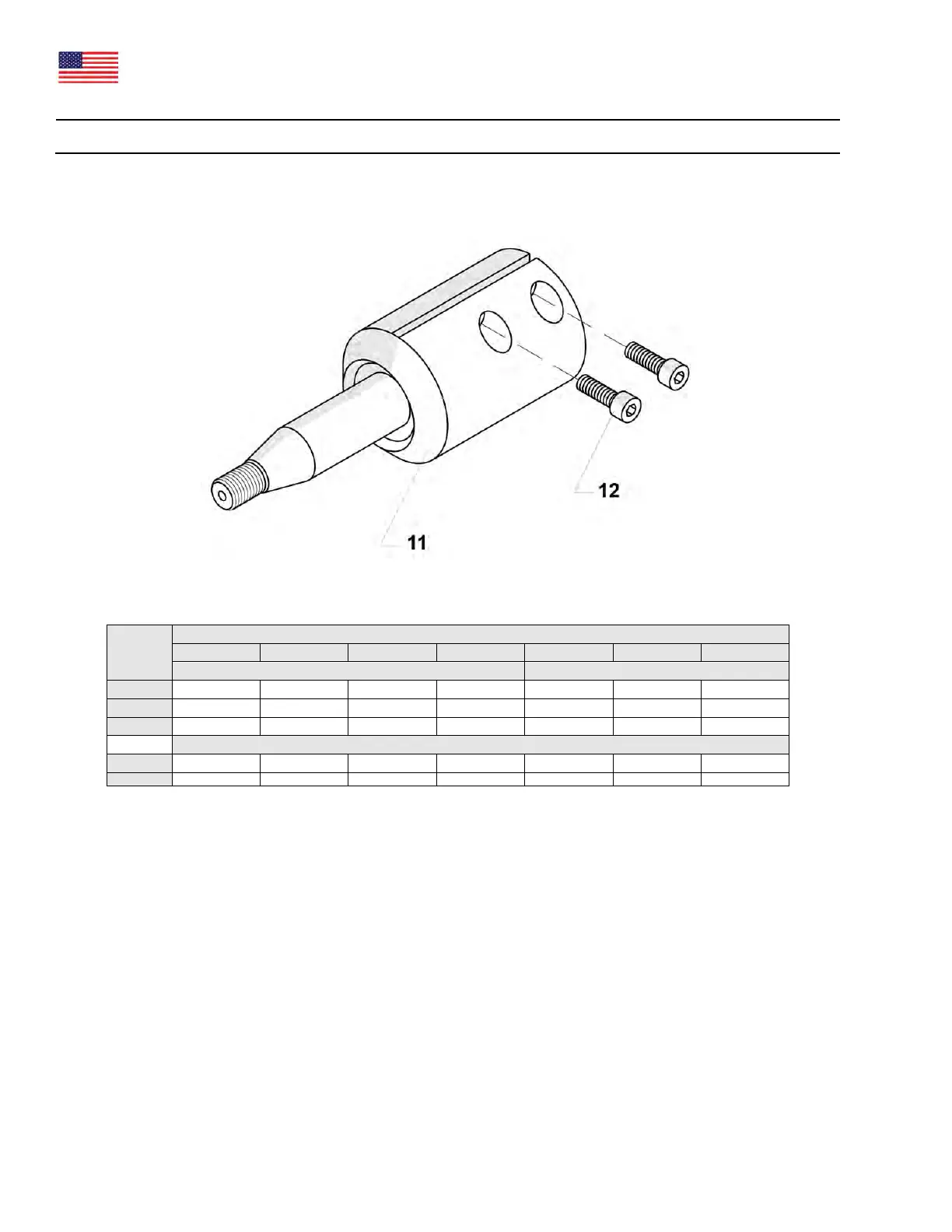

7. Ws+ Spare Parts, Dimensions
28
7.6 Shaft
Pump Type
Motor
145TC 182-184TC 213-215TC 254TC 254-256TC 284-286TSC 324TSC
Pos. 11 Shaft Ø25 Pos. 11 Shaft Ø35
Ws+20/15 L267333 L267334 ------ ------ ------ ------ ------
Ws+30/30 L267333 L267334 L267335 L267336 ------ ------ ------
Ws+40/15 ------ ------ ------ ------ L267341 L267342 L267343
Pos. 12
Qty. 2 2 2 2 2 2 2
Screw L771199 L771199 135664+ 135664+ 135664+ 135664+ 135664+
Note:
1. As of April 2014, the screws used on stub shafts L267335, L267336, L267341, L267342, and L267343 changed from
M8 (22 lb·ft torque) to M10 (41 lb·ft torque).
