APV
381497 USA 10/2014
7. Ws+ Spare Parts, Dimensions
25

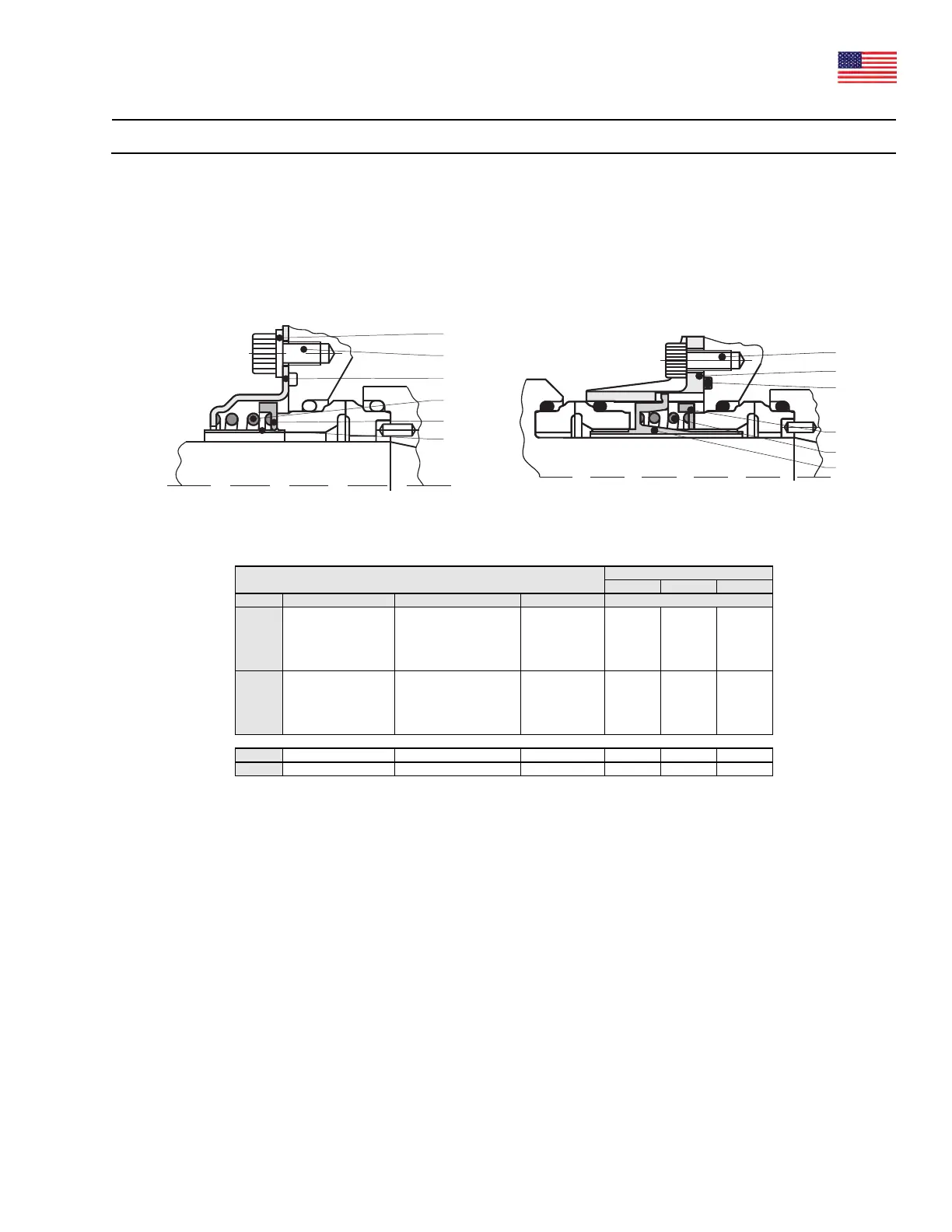

7.4 Shaft Seal
7.4.1 Fixing Kit
A. Single Seal Ø25+Ø35 B. Double Seal Ø25+Ø35
Fixing Kit
Shaft Size
Ø25 Ø35
Pos Description Items Material Part No.
A
Single Seal
Complete
Pos 5.1 Seal housing
Pos 5.2 Spring
Pos 5.3 Pressure ring
Pos 5.4 Drain pipe
------
AISI 316
AISI 316
AISI 316
PTFE
L772460
(L773100)
L772465
(L773101)
B
Double Seal
Complete
Pos 5.2 Spring
Pos 5.3 Pressure ring
Pos 5.9 Seal housing
Pos 5.11 Pressure ring
------
AISI 316
AISI 316
AISI 316
AISI 316
L194448
L194449
5.10 O-ring EPDM L772470 L771362
5.12 4 Screws M6x10 AISI 316 L770496 L770496
5.12
5.13
5.1
5.2
5.3
5.4
5.12
5.9
5.10
5.3
5.2
5.11
