7. Ws+ Spare Parts, Dimensions
29

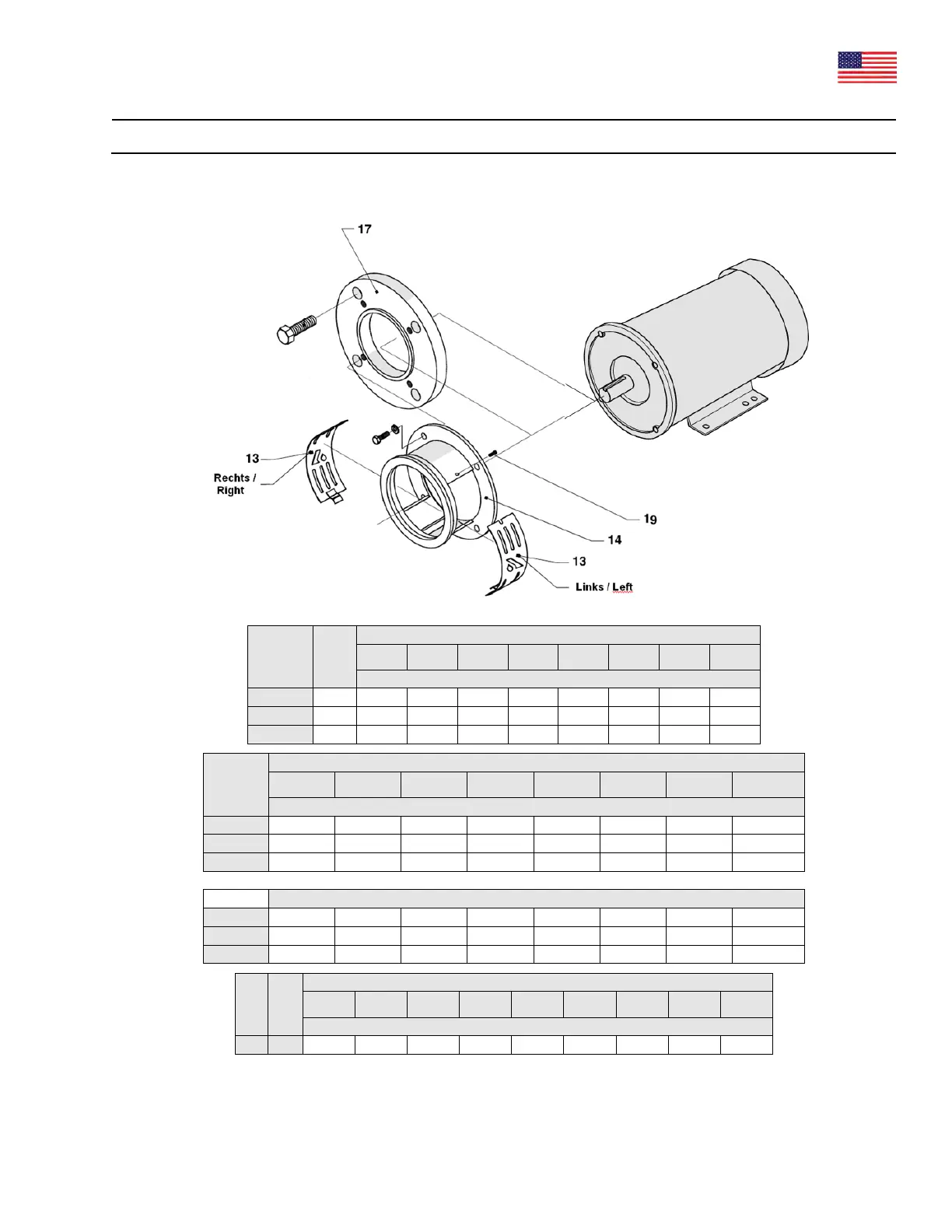

7.7 Extension Frame and Shaft Guard
Pump Type Qty
Motor
145TC 182TC 184TC
213-
215TC
254TC 256TSC
284-
286TSC
324TSC
Pos. 13 Shaft Guard
Ws+20/15 2 R / L L188334 L188334 L188334
Ws+30/30 2 R / L L188653 L188653 L188653
Ws+44/50 2 R / L L188653 L188653 L188811 L188811
Pump Type
Motor
145TC 182TC 184TC
213-
215TC
254TC** 256TC
284-
286TSC
324TSC***
Pos. 14 Extension Frame
Ws+20/15 L260973# L260973#* L260973#* ------ ------ ------ ------ ------
Ws+30/30 ------ ------ L260975 L260975 L260975 ------ ------ ------
Ws+44/50 ------ ------ ------ ------ L260977 L260977 L260978 L260978
# integrated in back plate pos. 7b
Pos. 17 Flange Adapter St 37 / (AISI 304SS)
* ------ *L267095 *L267095 ------ ------ ------ ------ ------
** ------ ------ ------ ------ **L267096 ------ ------ ------
*** ------ ------ ------ ------ ------ ------ ------ ***L267097
Pos
Qty.
Motor
56C
143-
145TC
182-
184TC
213-
215TC
254-
256TC
284-
286TSC
324-
326TSC
364-
365TSC
405TSC
Part No.
19 2 L700420 L700420 L700420 L700420 L700420 L700420 L700420 L700420 L700420
