St George DEO2A - UEO and DEO Installation Dimensions

43

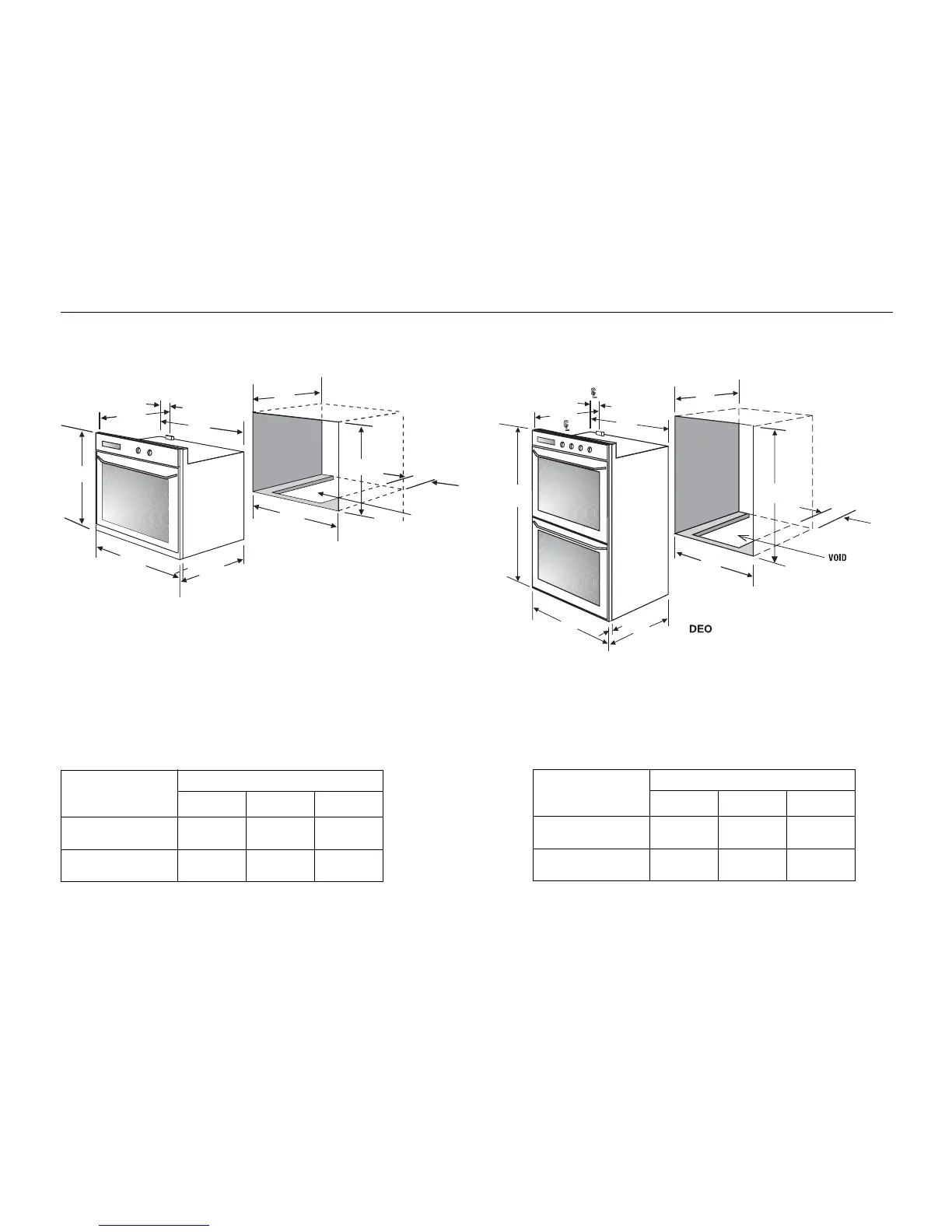

CABINET INSTALLATION INSTRUCTIONS
UEO
NB: The dimensions shown here are integrated flush-
mounted as recommended by St George.
For dimensions of other installation types see chart.
560
500
80
C
L
620
623
580
100
600
VOID
SO / UEOM / UEO
C
L
575
597
20
NB: The dimensions shown here are integrated
flush-mounted as recommended by St George.
For dimensions of other installation types see chart.
DEO
560
500
80
575
597
20
998
1001
580
100
600
Installation Dimensions
Method
HW D
Flush 1001 600 580
Trim Exposed 996 564 560
H = HEIGHT, W = WIDTH, D = DEPTH
Installation Dimensions
Method
HW D
Flush 623 600 580
Trim Exposed 618 564 560
H = HEIGHT, W = WIDTH, D = DEPTH
