6.3.4 Using ST-LINK/V2-B to program/debug
the STM32F429ZIT6 on board
To program the STM32F429ZIT6 on board, simply plug in the two jumpers on CN4, as
shown marked in red in
Figure 7, but do not use the CN2 connector as it could disturb the
communication with the STM32F429ZIT6 of the STM32F429 Discovery board.

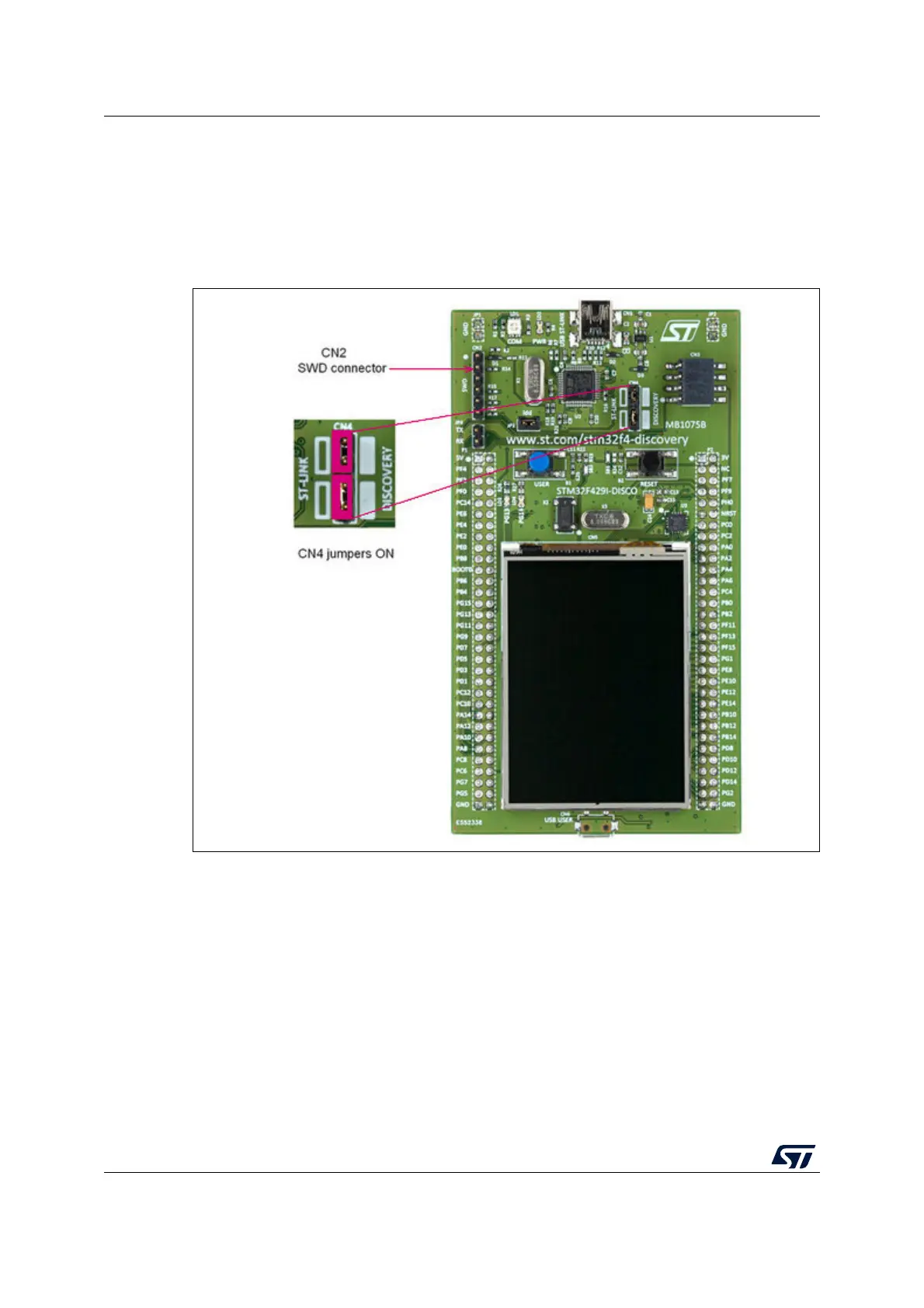

Figure 7. STM32F429 Discovery board connections
