UM1467 Using MDK-ARM Microcontroller Development Kit by Keil™
Doc ID 022172 Rev 1 26/46

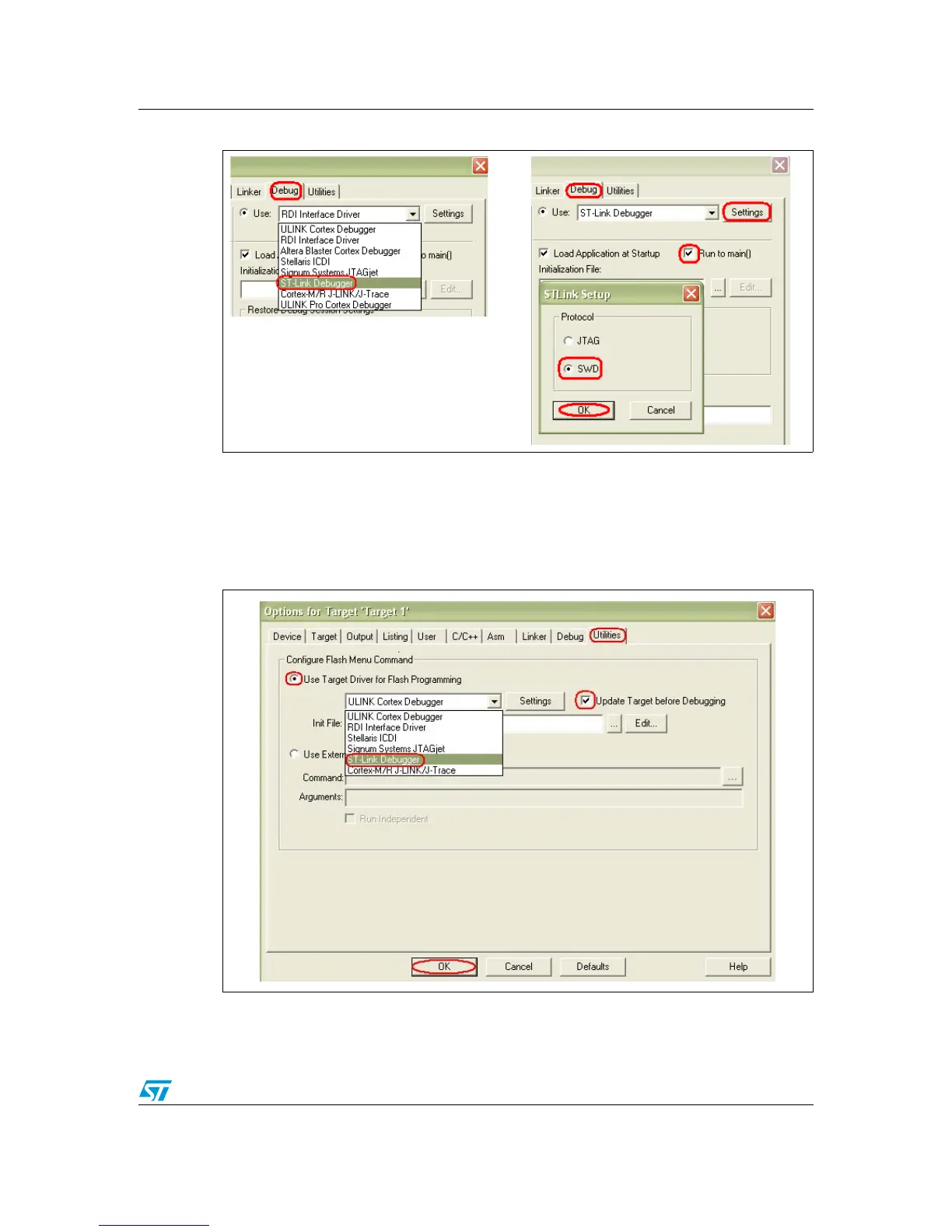

Figure 33. Target Options dialog box - Debug tab
5. Open the Utilities tab, select Use Target Driver for Flash Programming and select
the ST-Link Debugger from the drop-down menu.
6. Verify that the Update Target before Debugging option is selected.
7. Click OK to save your settings.
Figure 34. Target Options dialog box - Utilities tab
8. In the Project menu, select Build Target.
9. If your project is successfully built, the following window is displayed.
