Using MDK-ARM Microcontroller Development Kit by Keil™ UM1467
25/46 Doc ID 022172 Rev 1
7.3.2 Configuring project options
1. In the Project menu, select Options for Target 1 to display the Target Options dialog
box.
2. Open the Target tab and enter IROM1 and IARM1 start and size settings as shown in
Figure 32.

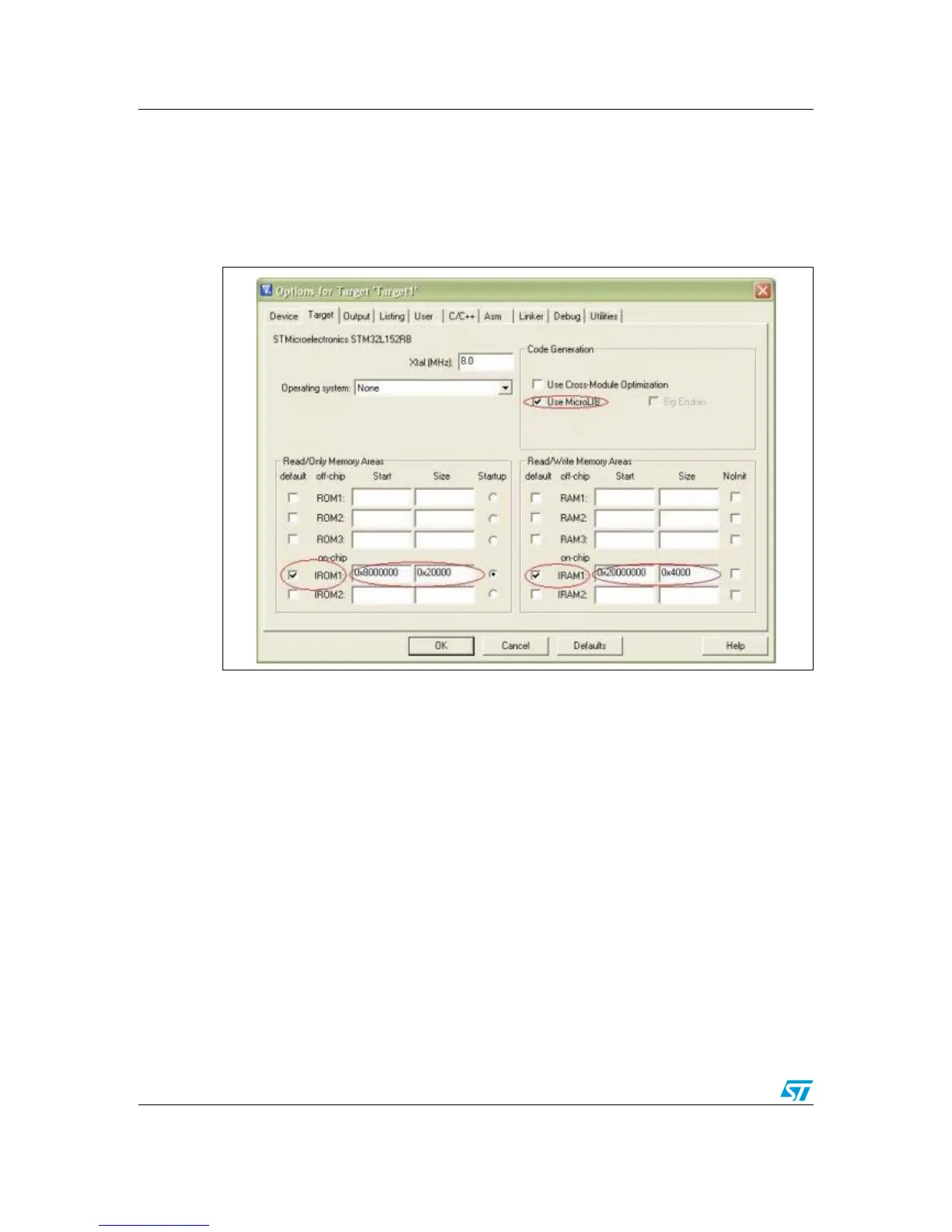

Figure 32. Target Options dialog box - Target tab
3. Open the Debug tab, click Use and select the ST-Link Debugger. Then, click Settings
and select the SWD protocol. Click OK to save the ST-Link setup settings.
4. Select Run to main().
