7.3 CN7 and CN10 ST morpho connectors
The CN7 and CN10 ST morpho connectors are male pin headers accessible on both sides
of the STM32 Nucleo-64 board (see
Figure 16). All signals and power pins, except
VDD_CORE 1.2 V of the STM32, are available on the ST morpho connectors. These
connectors can also be probed by an oscilloscope, logical analyzer, or voltmeter.

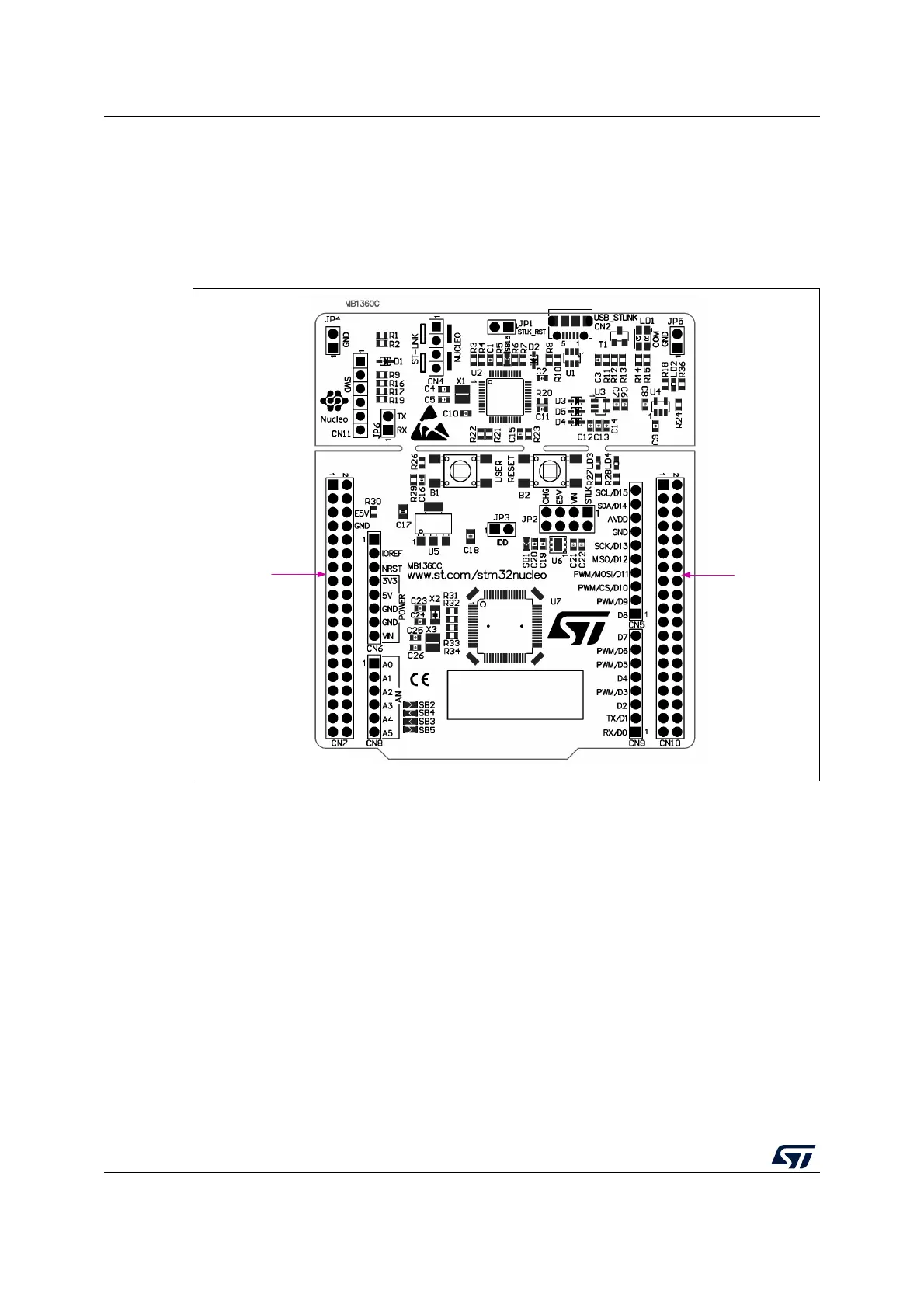

Figure 16. ST morpho connectors
MSv48509V2
CN7:
ST morpho connector
CN10:
ST morpho connector
