The STM32H7B3I-DK board supports four “SMPS/LDO” configurations of the STM32H7B3LIH6Q microcontroller,

given in the figures below.

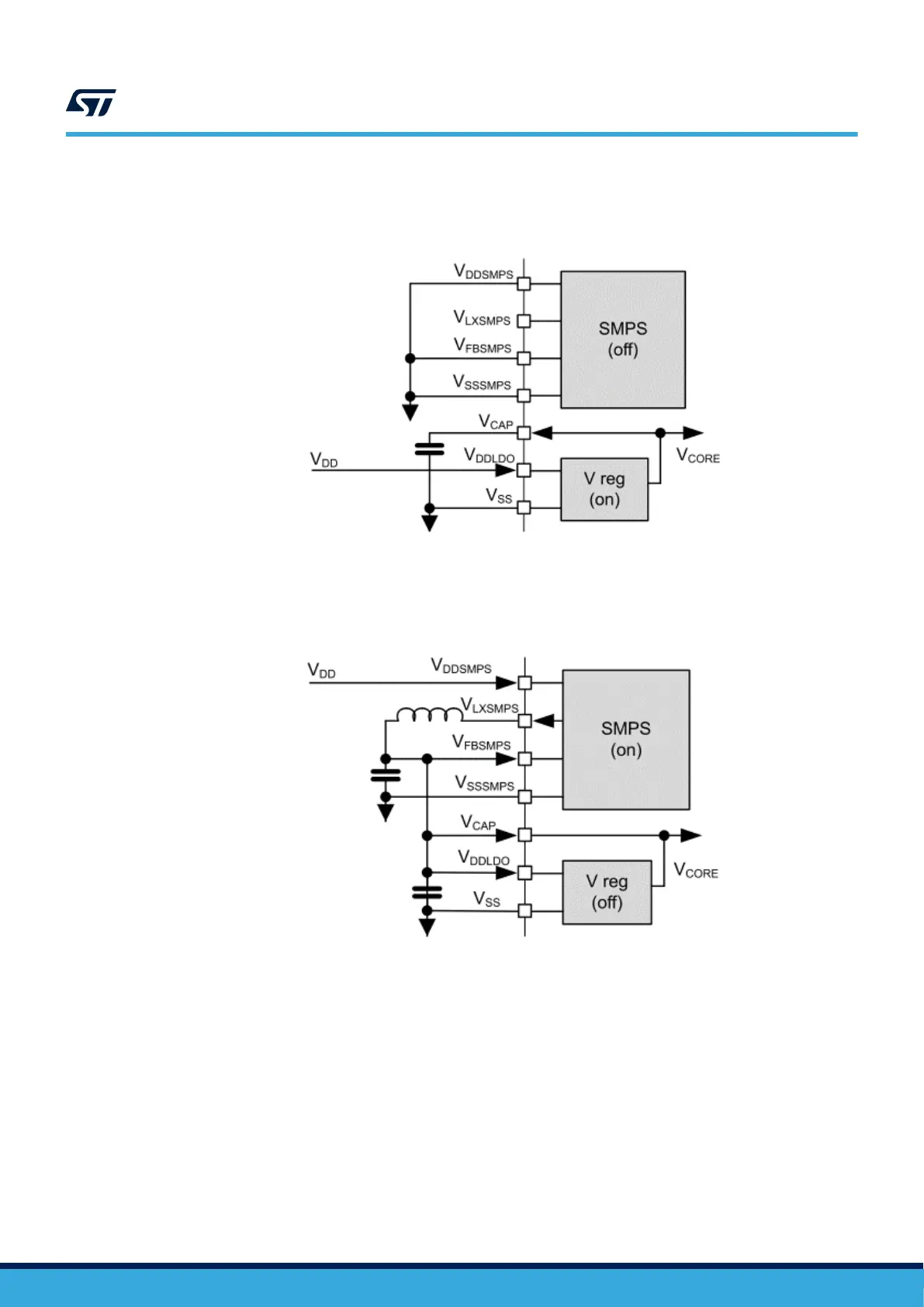

Figure 11. Config1 - LDO only

Figure 12. Config2 - SMPS only (default)

UM2569

Power supply

UM2569 - Rev 6

page 16/53
