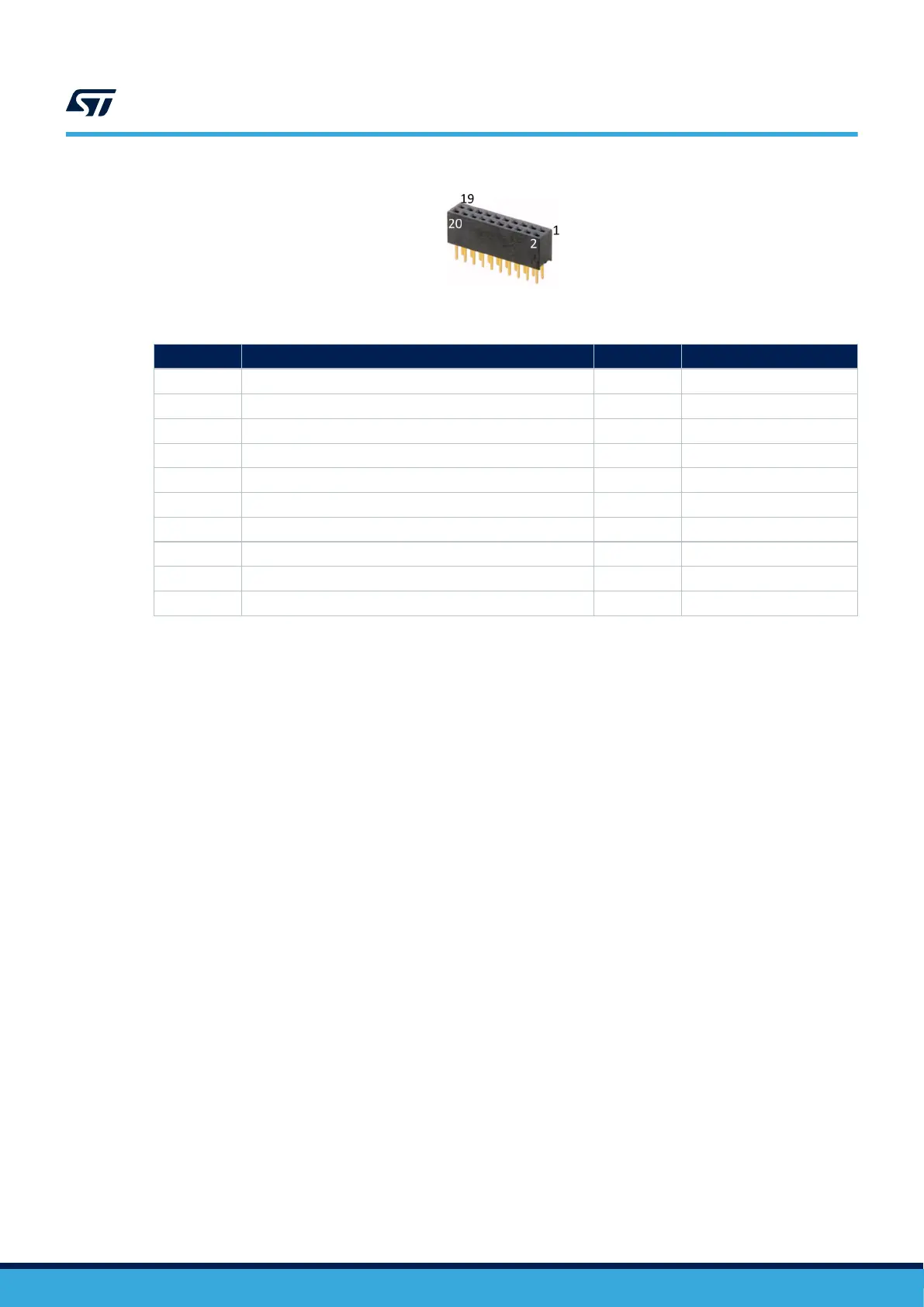

Figure 23. CN3 audio connector

Table 21. CN3 audio connector pinout

Pin number Function / MCU port Pin number Function / MCU port

1 GND 2 3V3

3 DFSDM1_2_CKOUT (PB0) 4 DFSDM1_2_CKOUT (PB0)

5 DFSDM1_DATIN7 (PB9) 6 DFSDM1_2_DATIN1 (PB12)

7 DFSDM1_DATIN3 (PC7) 8 NC

9 NC 10 DETECTn (PI6)

11 NC 12 MEMS_LED (PH15)

13 NC 14 NC

15 NC 16 NC

17 NC 18 NC

19 3V3 20 GND

UM2569

CN3 audio connector

UM2569 - Rev 6

page 31/53
