STACK Dash-2 Kart Logger 2. Getting Started
Users Guide 5

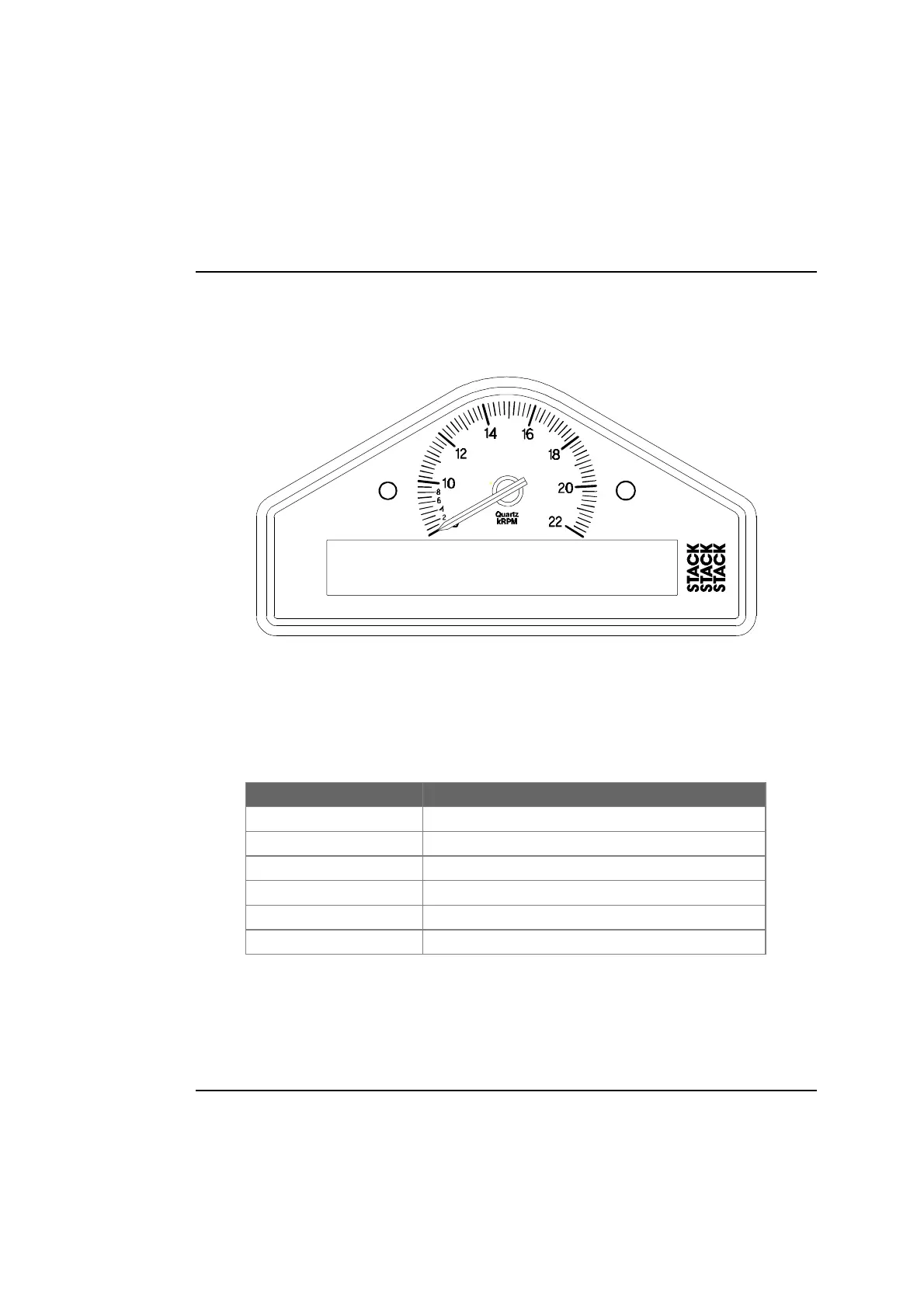

The Display Module
The Display Module consists of an analogue tachometer and a digital display panel mounted in a composite housing. There are a variety of
dialfaces available for the product. The 0-10-22000 dialface used in this manual is just an example.
The Display Module is connected to the sensors by a wiring harness. The wiring harness has a 19-way military connector for connection
to the Display Module.
Wiring Harness
Each of the wires in the harness is labelled.
Labels on short cables Connection To
WS Wheel speed sensor
ES Engine Speed (RPM)
EGT BP Exhaust Gas Temperature or brake position sensor
TMP Cylinder Head or Water temperature sensor
SP Steering Position Sensor
TP Throttle Position Sensor
