STACK Dash-2 Kart Logger 4. Configuring the Dash-2 Kart Logger
Users Guide 17

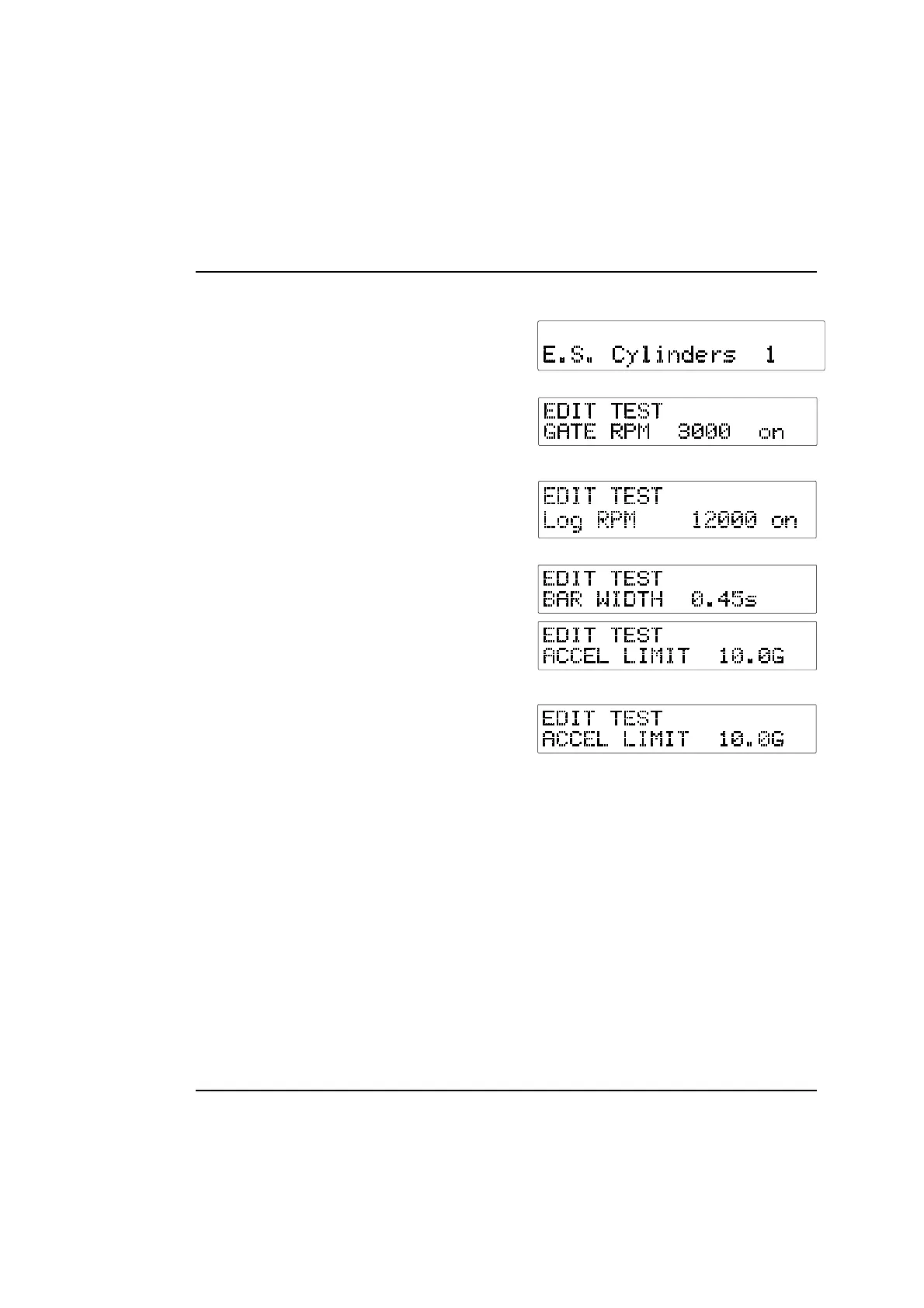

Engine speed cylinders:
Sets the number of cylinders in the engine so that the RPM is measured
correctly. Most kart motors require this value set at 2, irrespective
of whether they are two or four-stroke.
Gate RPM:
The engine speed at which the peak values start updating and alarms
appear.
Logging RPM:
The engine speed which will cause the Dash-2 to automatically start
logging.
Bar Width
The width of the performance meter bar display in seconds.
Accel Limit
Maximum expected acceleration.
Decel Limit
Maximum expected deceleration or braking force.
Switching Alarms on or off
You can enable (switch on) or disable (switch off) each of the alarm warnings by pressing and holding Switch 1 and then pressing
Switch 2.
Note that you might change the preset value of the parameter slightly while pressing both switches. This does not matter if you are
switching the alarm warning off and, if necessary, you can correct the preset value after you switch it on again.
Leaving configuration mode
When you wish to return to the normal display, press Switch 4.
