Error! Main Document Only.6. Installing the Dash-2 Kart Logger STACK Dash-2 Kart Logger
34 Users Guide

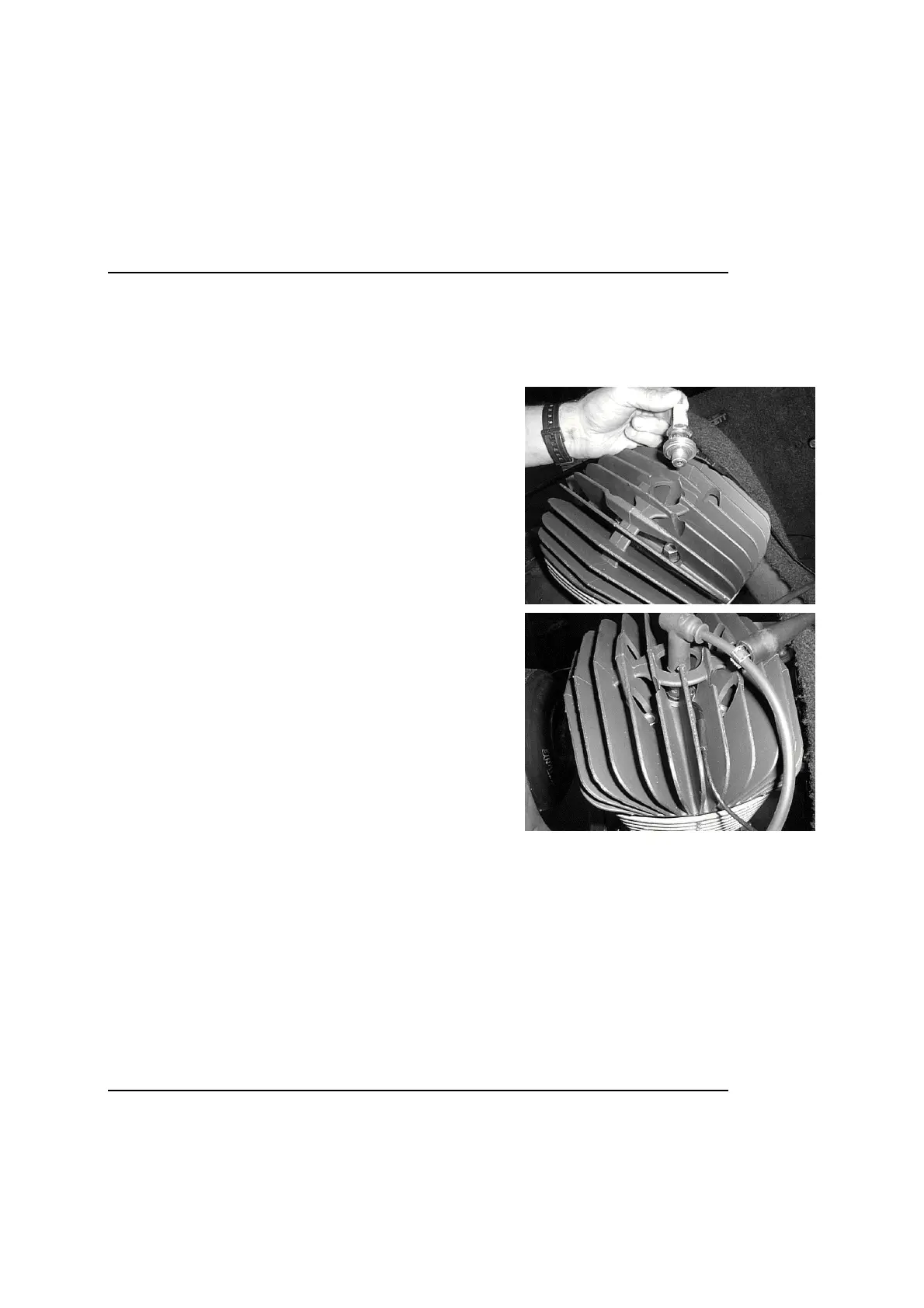

Fitting the Cylinder Head Temperature sensor
The sensor comes in the form of a circular sensor, mounting underneath the spark plug, clamping the sensor firmly against the cylinder
head.
Procedure
1. Remove the sparking plug lead and remove the spark plug.
2. Position sensor with the stepped base into the plug seat. It may be necessary to
remove the washer from the spark plug
3. Refit the spark plug and reattach the plug lead.
4. Route the sensor cable towards and under the driver seat, then up the steering
column.
5. Connect the sure seal connector to the system harness input labelled TMP.
