30

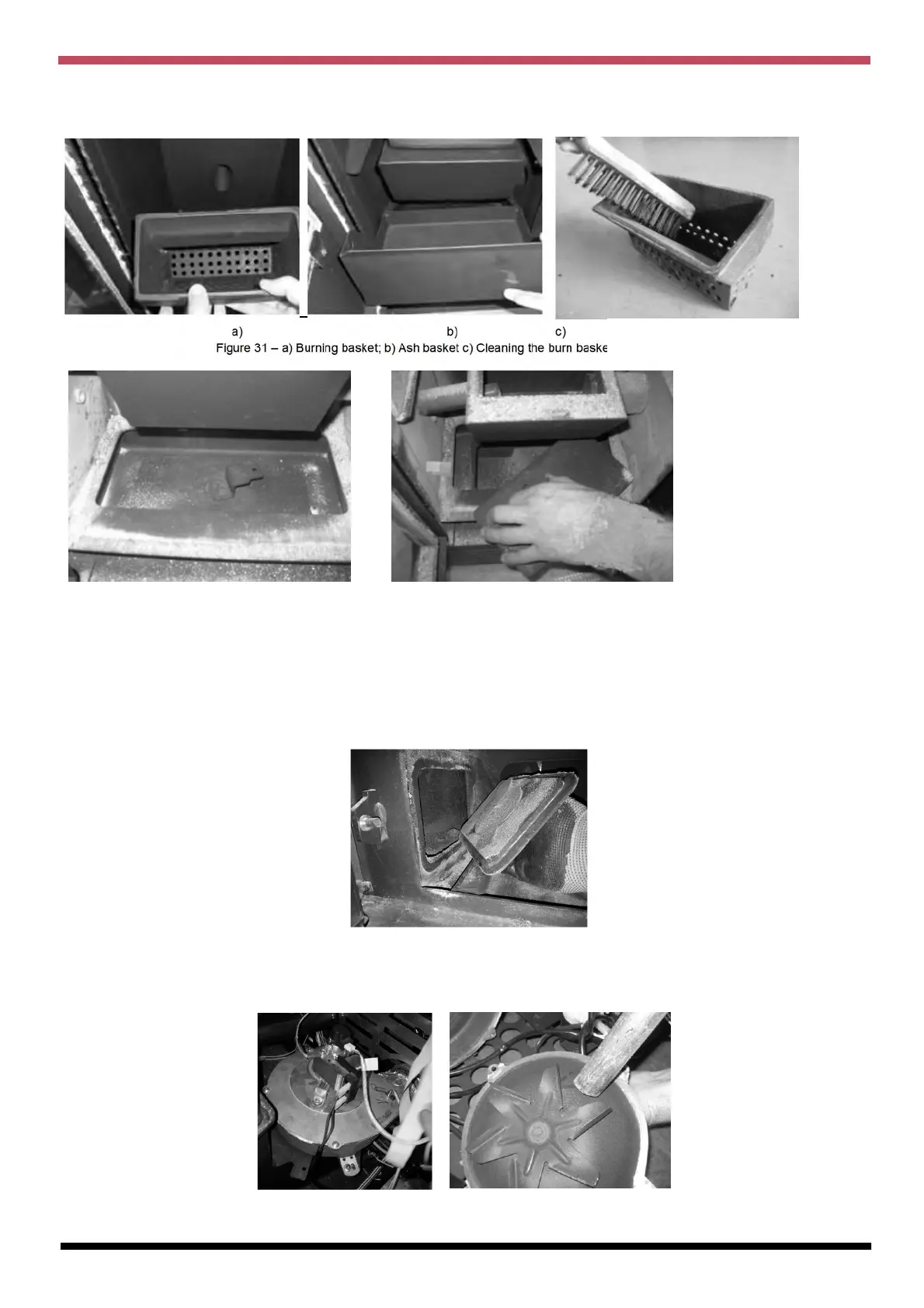

The burning basket (Figure 31-a) and ash basket (Figure 31-b) must then be removed and the ash vacuumed from both. The interior
of the stove must also be cleaned by opening the hatch, as shown in Figure 32. Finally, assemble the parts in the reverse to which
they were removed and close the stove door.
a) b) c)
Figure 31 – a) Burning basket; b) Ash basket c) Cleaning the burn basket.
a) b)
Figure 32– Cleaning the interior of the stove
11.3 Additional cleaning K1200
Additional cleaning should be performed after every 600-800 kg of pellets consumed or once a year whichever comes first.
Remove the side covers to access the side lids of the combustion chamber. To clean the interior of the unit, remove the lid and
vacuum the ashes. Using a 20-25mm wide 80cm long steel brush thoroughly clean the fume ducts (33)
Figure 33 – Cleaning Vacuum the interior
If you notice that the fume extraction is not effective, we recommend cleaning the interior of the extractor with a vacuum cleaner,
as shown in 34-a & b. At a minimum, this operation should be performed, at least, once a year.
a) b)
Figure 34 – a) Remove the screws; b) Remove the extractor
