Stanley K1200 Installation And Operating Instructions

41
14 Electrical

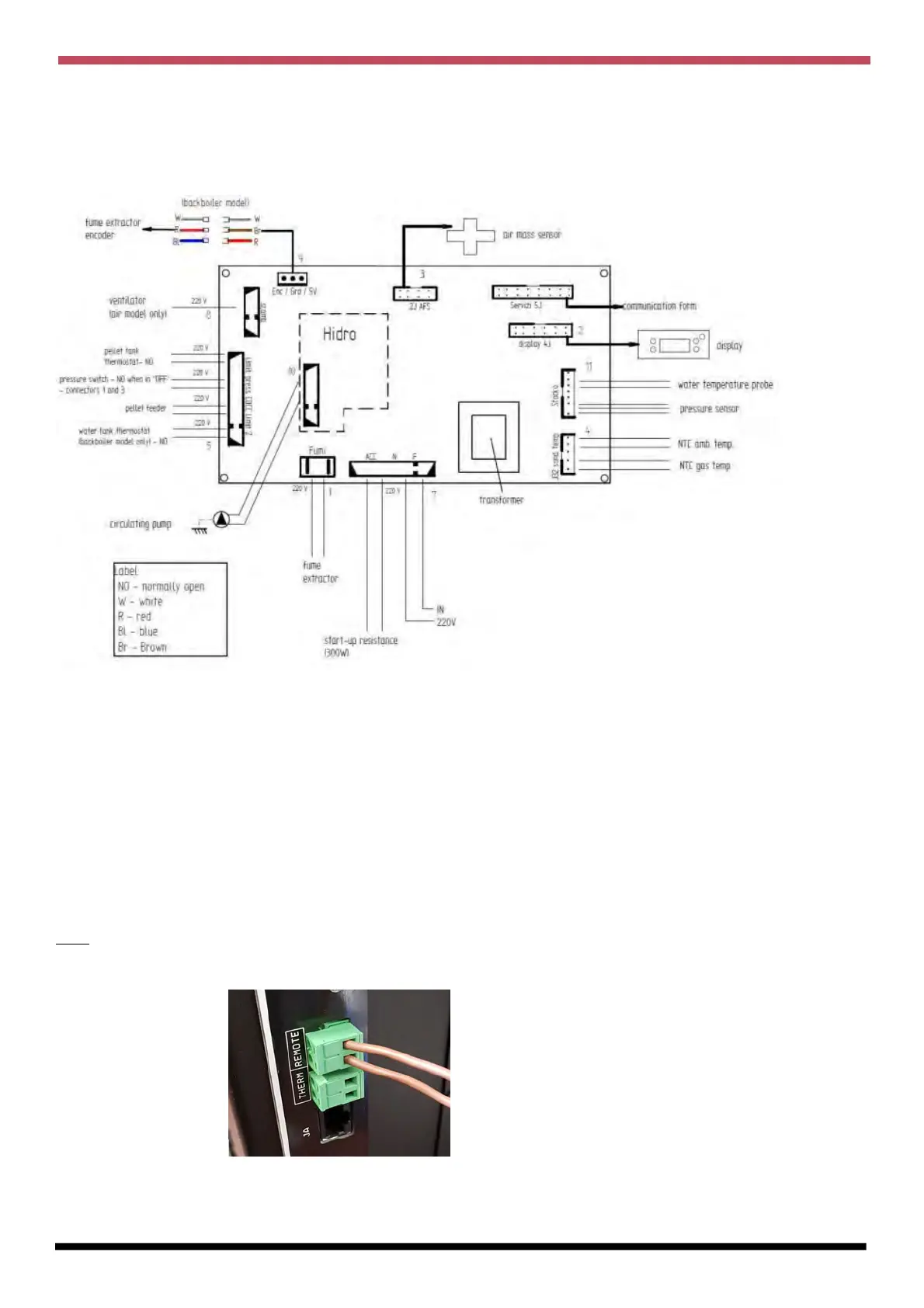

14.1 Electrical diagram of the Boiler pellet stove.
Figure 44 – Electrical diagram
14.2 Remote switched connection.
The volt free connection on the rear of the stove can be used to provide a remote call for heat.
The product can be set up with a remote timeclock, room thermostats and motorised valves using the standard S plan
configuration where the auxiliary switch wires of the motorised valve can be connected to the remote connections in place of the
wires in the picture below providing a call for heat.
All electrical connections must be made by a competent electrician.
The connection “ therm” can be used in conjunction with a room thermostat, it will then allow the output of the pellet stove vary
between high and low output in accordance with the thermostat.
The connection” remote” can be used in conjunction with a timer to switch the stove on or off.
Note,
Connections are low voltage; a closed loop will call the stove. Remote connections should be designed to switch infrequently to
avoid excessive start up and shut down of the boiler.
Figure 45 – Remote connection
