48
Symbols
Figure 57
– Symbols
17 Life cycle of a Boiler pellet stove
Around 90% of the materials used in the manufacture of these stoves are recyclable, thus helping to reduce environmental impact
and contributing to the sustainable development of the Planet. End-of-life stoves should be returned to authorised waste
processing systems. We advise you to contact your local authorities for instructions.
18 Annexes

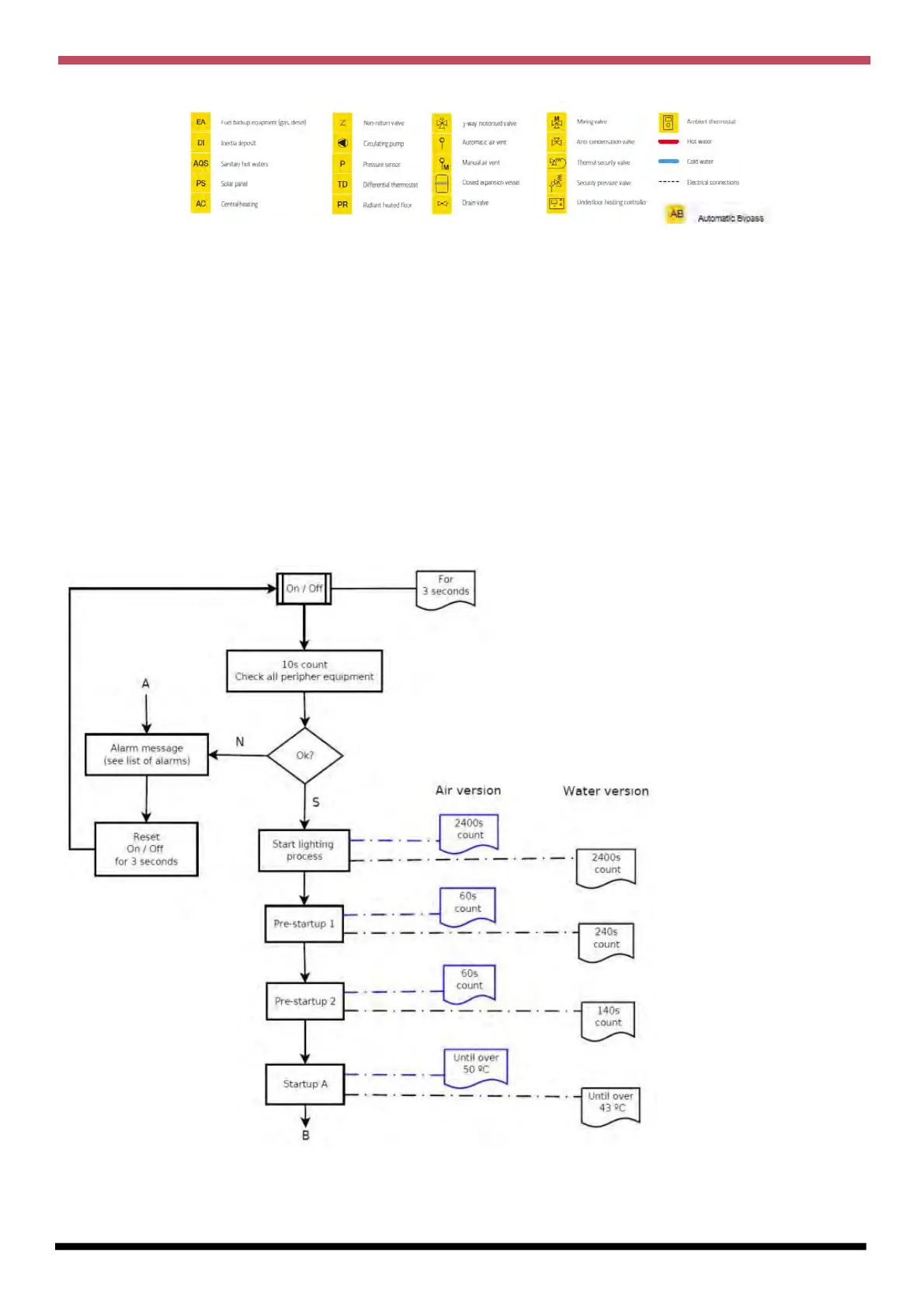

Operations flow charts
· Flow chart 1 – Normal activation
Note (only for the boiler model): The circulating pump operates intermittently from the moment the water temperature reaches
50ºC and operates continuously from the set-point temperature.
To Next Page
