Stanley K1200 Installation And Operating Instructions

32
11.4 K1700/ K2300
Additional cleaning should be performed after every 600-800 kg of pellets consumed or once a year whichever comes first. For the
boiler stove, the procedure involves cleaning the air flow pipes and turbulators. To do this, open the lid on the top of the stove
(Figure 36-a) and remove the six wing nuts securing each turbulator set (Figure 36-b and 36-c). Then pull the turbulators up
(Figure 36- d/e). A vacuum cleaner must be used to clean this area (Figure 36-f) and the interior of the pipes (Figure 36-g) can
be cleaned with a steel brush. The turbulators that are removed must also be cleaned with a steel brush (Figure 36-h).
To reinstall the turbulators, execute in reverse the above procedure shown in the figures.
a) b)
c) d)
e) f)
g) h)

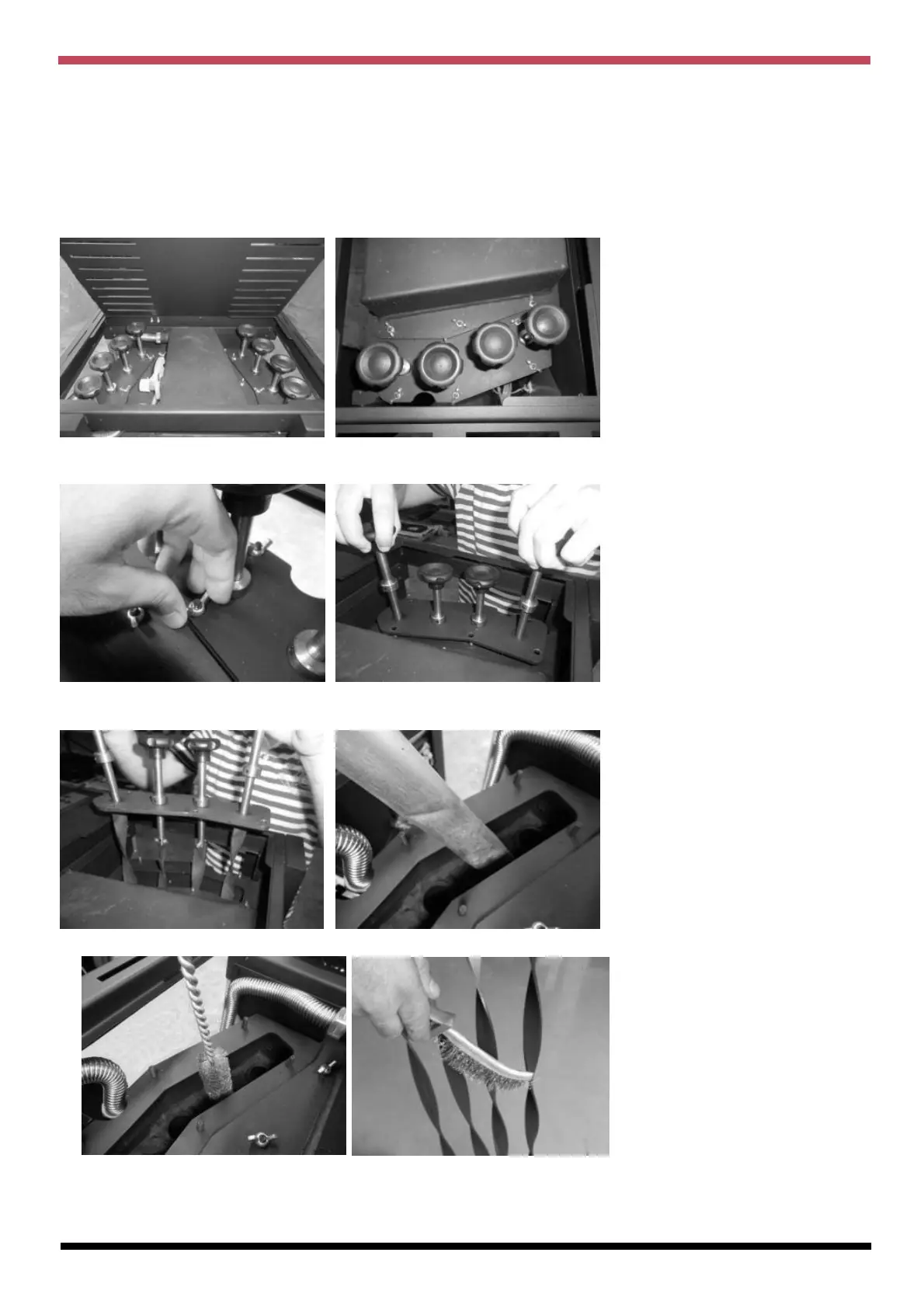

Figure 36 – Cleaning the air flow pipes and turbulators
