QB Expert Alpha Controller
110
QPM Tool Controls and Operation
3
6
5

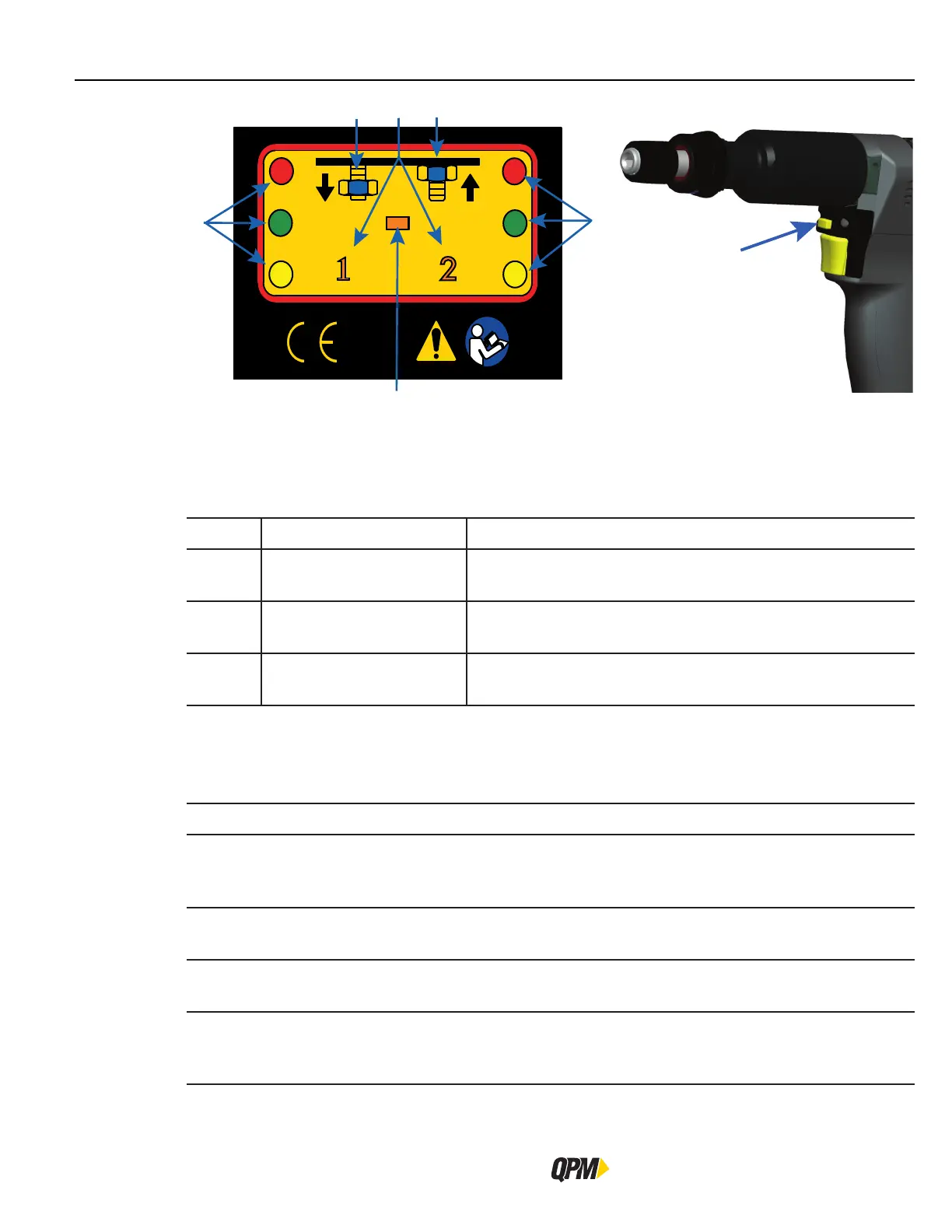

5.2.4 Tool Status Lights
Handheld tools from STANLEY ASSEMBLY TECHNOLOGIES have three (green, yellow, and red) status lights. The
status light mirror or copy the status lights on the controller.
Green Tightened to specified limits The Fastening cycle meets all of the specified parameters.
Yellow Low torque or angle
The Fastening cycle was rejected for not achieving either low
torque or low angle.
Red High torque or angle
The Fastening cycle was rejected for exceeding either high torque
or high angle.
All lights Reverse
The next time the start trigger is engaged the tool will remove the
fastener.
5.2.5 MFB Mode
The MFB Mode configures the multiple function button for handheld QPM tools. The button can be configured to
operate in any of the following modes.
Disable The button does nothing.
Reverse
(Disassembly)
Pressing the button toggles between assembly and disassembly and illuminates the
appropriate blue light [1] or [2]. All tool status lights [3] and [7] flash when the tool is in
disassembly mode.
Job/Task Select
Pressing the button toggles between Job/Task 1 and Job/Task 2 and illuminates the
appropriate orange light [6] or [4].
Arm
Pressing the button arms (activates) the trigger but does not start the tool. The blue
assembly light [2] comes on to show that the tool is armed for three seconds.
Reset Reject
This function, when selected, will cause the tool to disable after a NOK Fastening cycle.
The Reject Tone, when enabled, will sound. Pressing the button re-enables the tool
indicating the operator acknowledges the rejected Fastening cycle and wishes to repair it.
